American Standard6065121
American Standard Exposed sensor-operated flush valve (Toilet Flush Valve). Model 6065121.002. Battery-powered with 192,000 cycle life; Includes 1" sweat solder kit and angle stop with back flow protection; Outlet includes 1-1/2" high back pressure vacuum breaker; Flow requirement of 25 gpm (94.6 L/min.). material: Dezincification-resistant brass alloy
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 6065121
- Product type
- Water Closets & Bidets
- MasterFormat
- 22

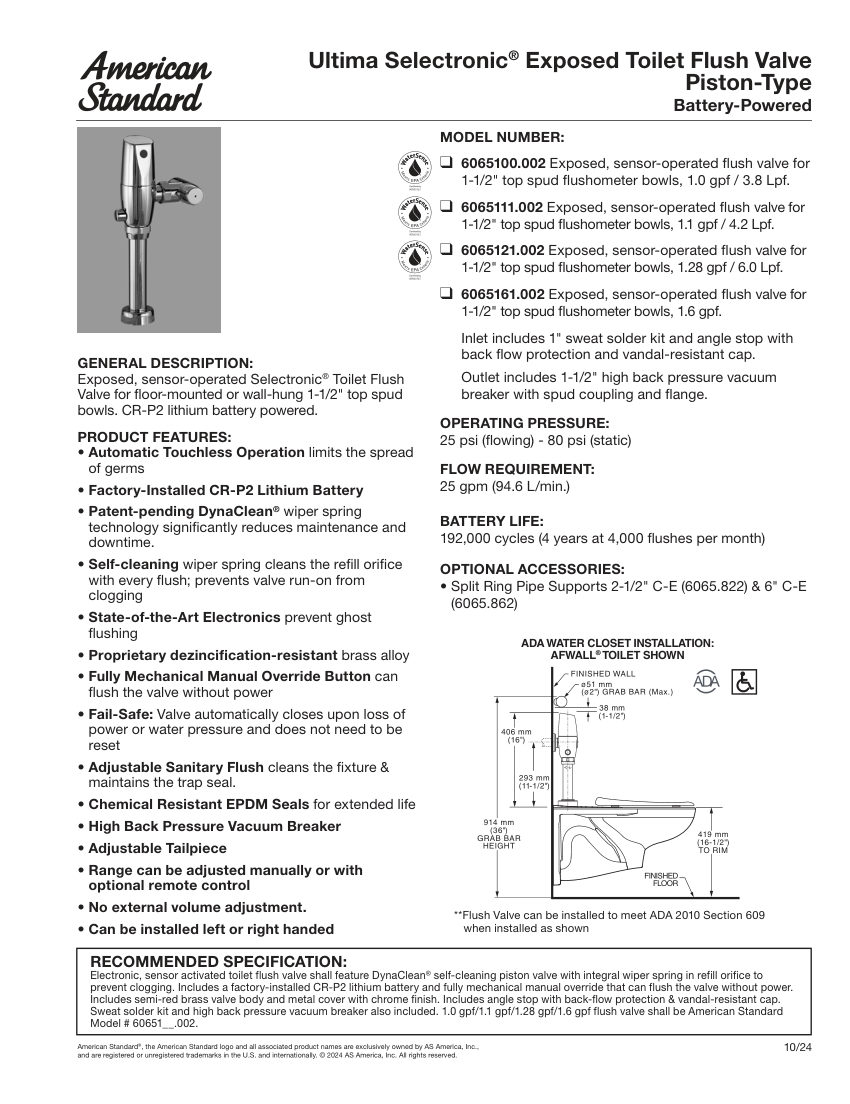

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 6065121 |
|---|---|
| Description | American Standard Exposed sensor-operated flush valve (Toilet Flush Valve). Model 6065121.002. Battery-powered with 192,000 cycle life; Includes 1" sweat solder kit and angle stop with back flow protection; Outlet includes 1-1/2" high back pressure vacuum breaker; Flow requirement of 25 gpm (94.6 L/min.). material: Dezincification-resistant brass alloy |
| Connection size | 1-1/2" top spud |
| End connection | 1" sweat solder inlet, 1-1/2" spud coupling outlet |
| Pressure Rating | 25 psi (flowing) - 80 psi (static) |
| Flow Rate | 1.28 gpf / 6.0 Lpf |
| Mounting | Floor-mounted or wall-hung. |
Also cataloged as: 6065121.002
