DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard6065223

American Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 6065.223.007. Self-cleaning piston with integral wiper spring; Fully mechanical manual override button; Fail-safe: closes upon loss of power or water pressure; Vandal-resistant chrome-plated metal wall plate. material: Semi-red brass alloy, EPDM seals

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6065223.pdfData sheet

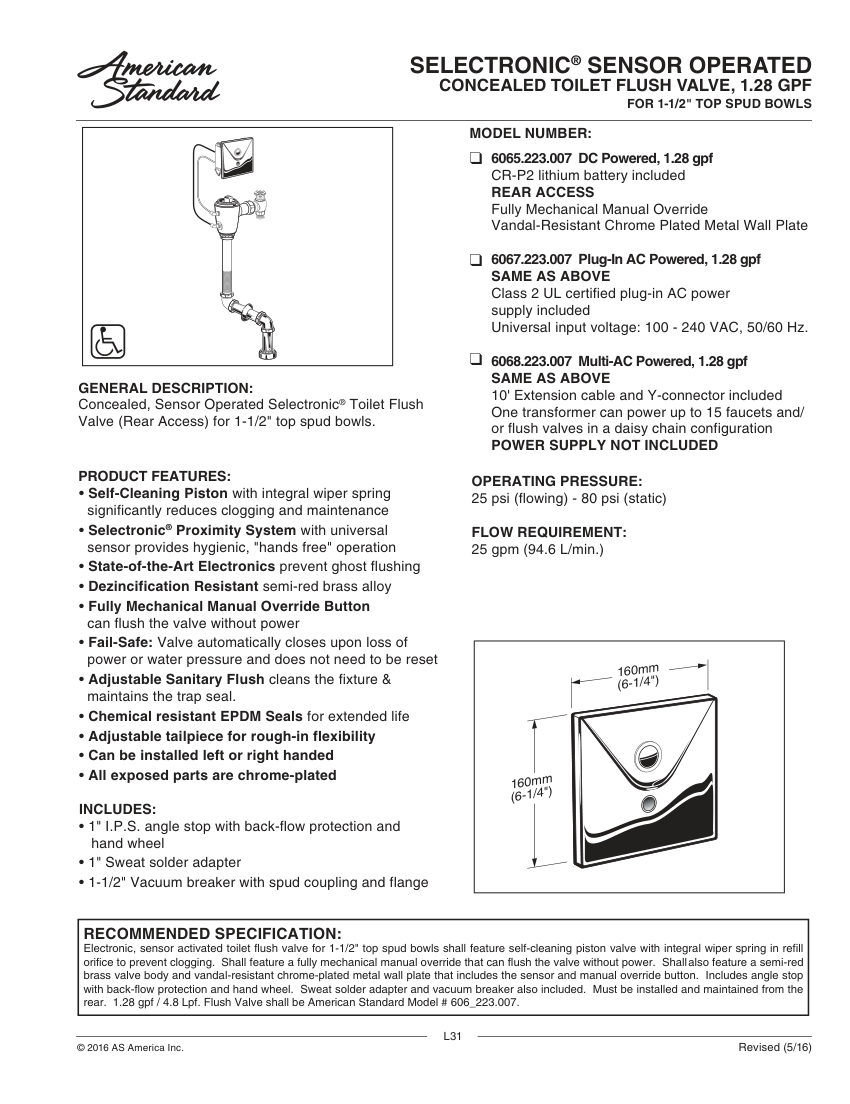

American Standard 6065223 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6065223
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6065223
DescriptionAmerican Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 6065.223.007. Self-cleaning piston with integral wiper spring; Fully mechanical manual override button; Fail-safe: closes upon loss of power or water pressure; Vandal-resistant chrome-plated metal wall plate. material: Semi-red brass alloy, EPDM seals
Connection size1-1/2" top spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.28 gpf
FinishChrome Plated.

Also cataloged as: 6065223.007

  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
