DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American StandardConcealed Selectronic Back Spud Toilet 1.6 gpf Flush Valve6065262

American Standard Concealed Toilet Flush Valve (Selectronic). Model 6065.262.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes 1" angle stop with back-flow protection. material: Semi-red brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6065262.pdfData sheet

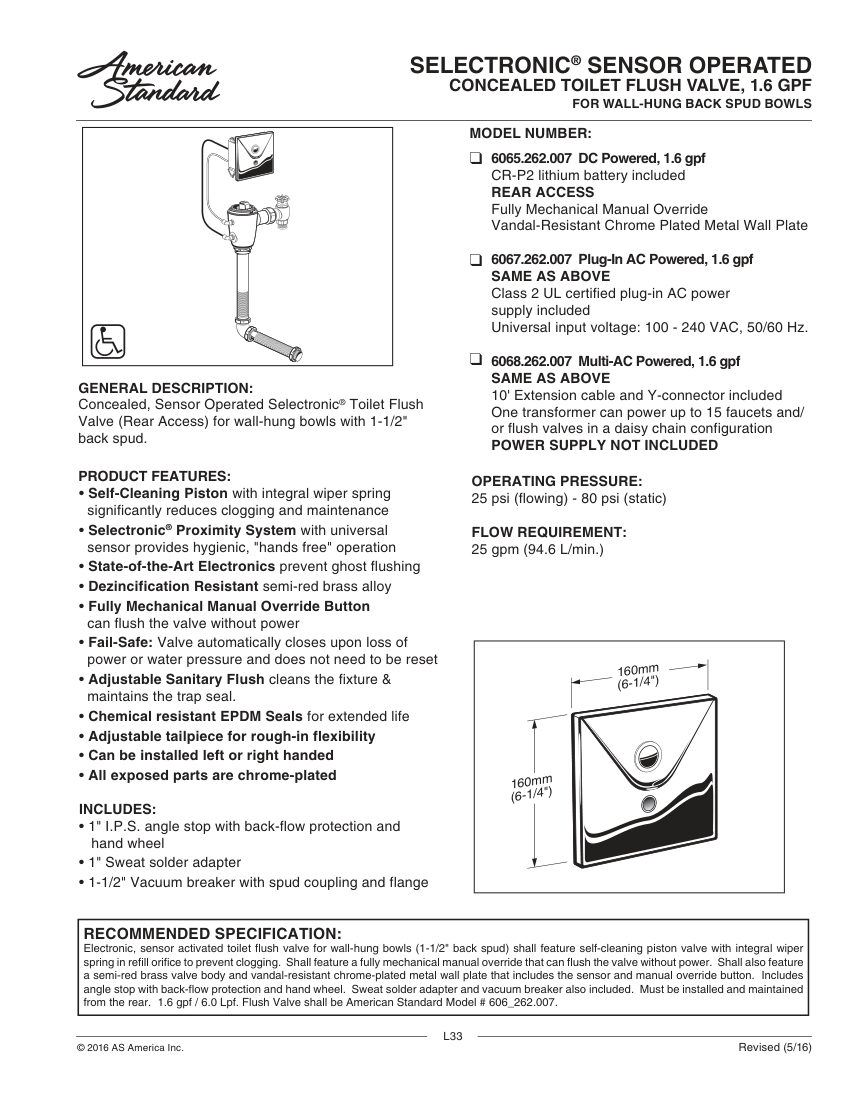

American Standard 6065262 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6065262
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6065262
DescriptionAmerican Standard Concealed Toilet Flush Valve (Selectronic). Model 6065.262.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes 1" angle stop with back-flow protection. material: Semi-red brass alloy
Connection size1-1/2" back spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter, 1-1/2" Vacuum breaker
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf
FinishChrome-plated.

Also cataloged as: 6065262.007
