DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard6065361

American Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 6067.361.007. Plug-In AC Powered with Class 2 UL certified supply; Self-cleaning piston with integral wiper spring; Fully mechanical manual override button; Fail-safe design closes valve on power/water loss. material: Semi-red brass alloy, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6065361.pdfData sheet

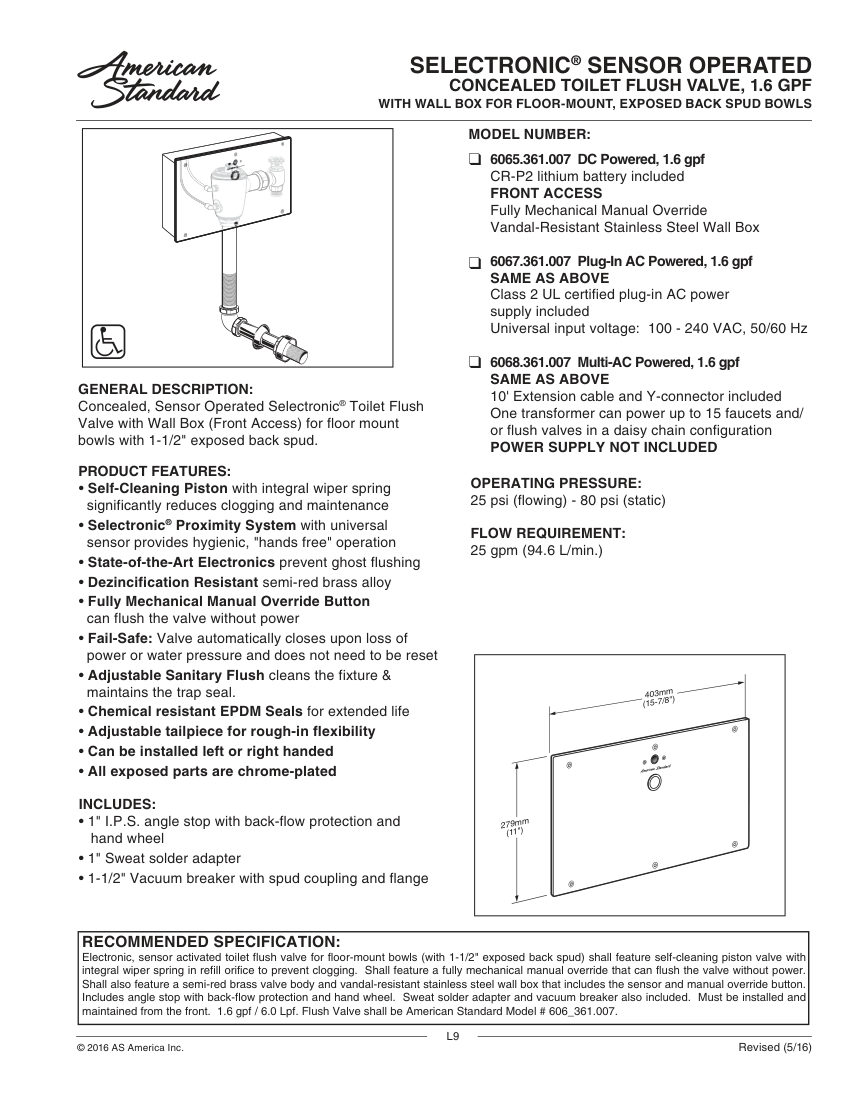

American Standard 6065361 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6065361
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6065361
DescriptionAmerican Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 6067.361.007. Plug-In AC Powered with Class 2 UL certified supply; Self-cleaning piston with integral wiper spring; Fully mechanical manual override button; Fail-safe design closes valve on power/water loss. material: Semi-red brass alloy, Stainless Steel
Connection size1-1/2" exposed back spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf (6.0 Lpf)
FinishChrome-plated.

Also cataloged as: 6065361.007
