DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard6065363

American Standard Concealed Toilet Flush Valve (Selectronic). Model 6065.363.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6065363.pdfData sheet

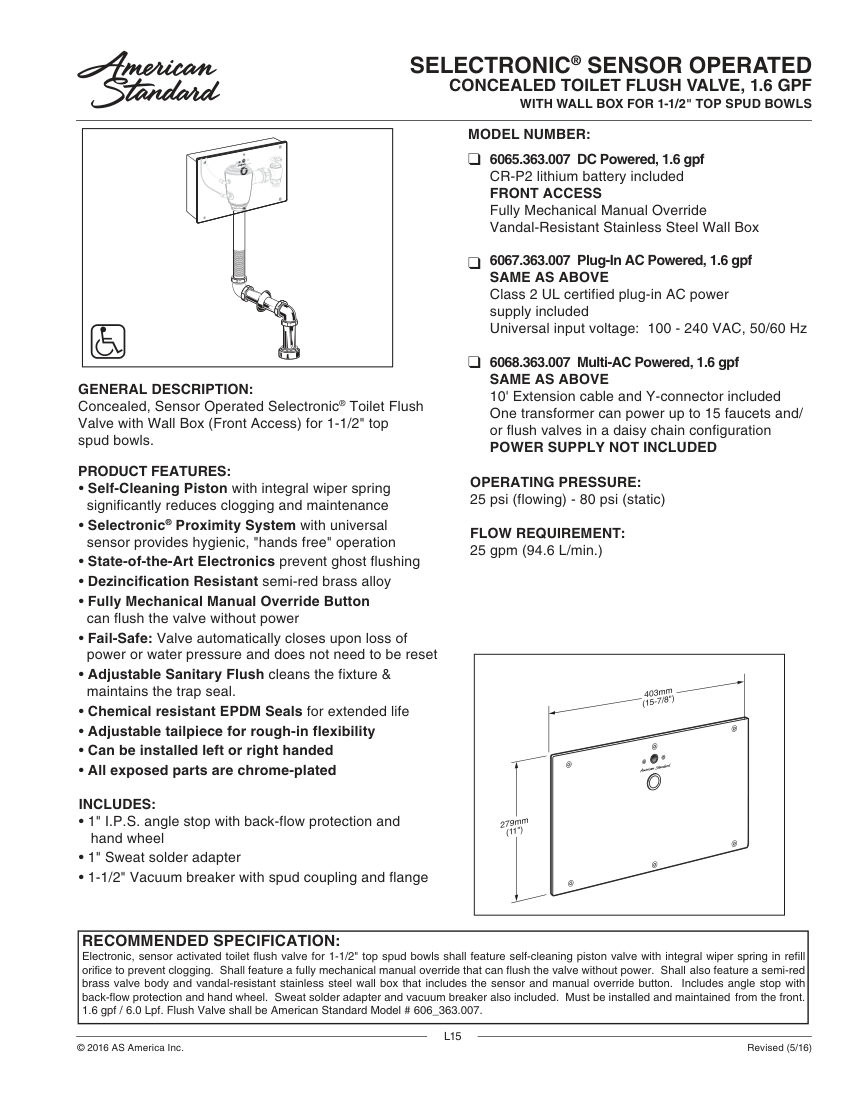

American Standard 6065363 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6065363
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6065363
DescriptionAmerican Standard Concealed Toilet Flush Valve (Selectronic). Model 6065.363.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel
Connection size1-1/2" Top Spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf
FinishChrome-plated.

Also cataloged as: 6065363.007
