DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard6065761

Name: American Standard 6065761
Brand: American Standard
SKU: 6065761

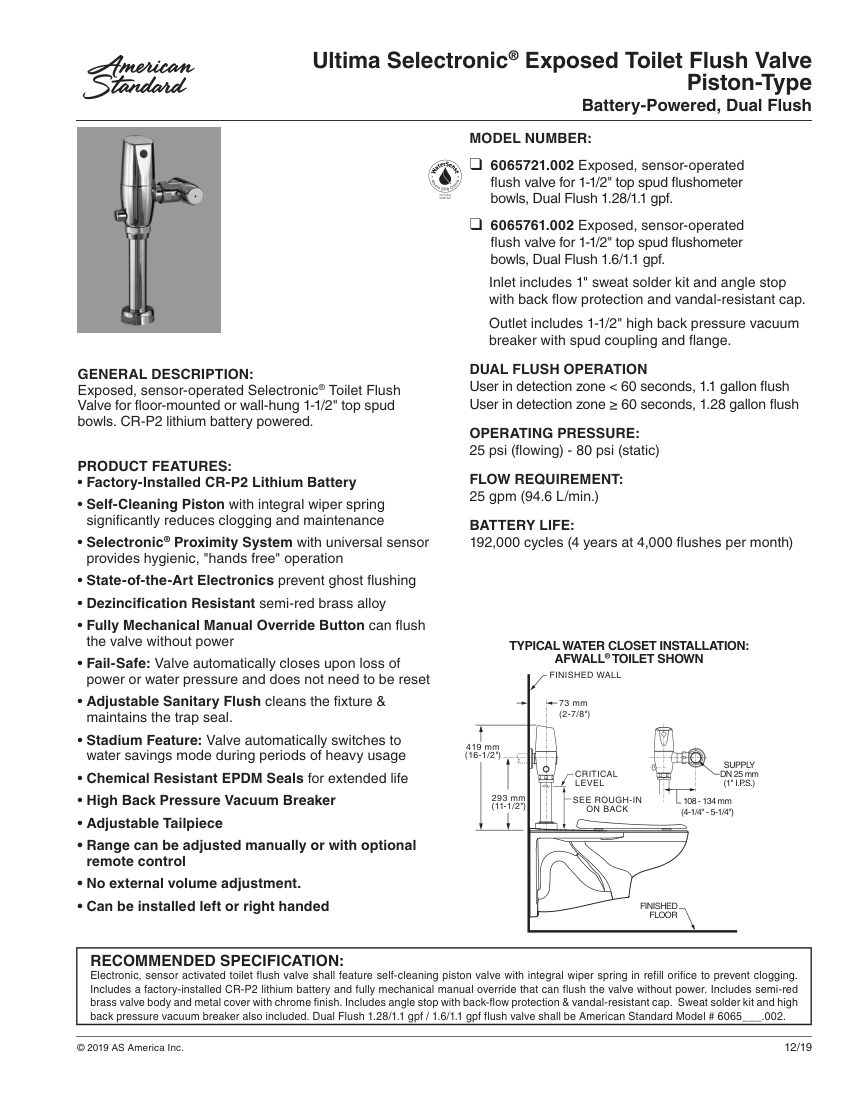

American Standard Toilet Flush Valve (Ultima Selectronic). Model 6065761.002. Piston-type valve with self-cleaning integral wiper spring

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	6065761
Description	American Standard Toilet Flush Valve (Ultima Selectronic). Model 6065761.002. Piston-type valve with self-cleaning integral wiper spring
Dual flush	1.1 gpf for <60s detection, 1.6 gpf for ≥60s detection; Includes high back pressure vacuum breaker and angle stop with back-flow protection
Battery life	192,000 cycles (approx. 4 years at 4,000 flushes/month). material: Semi-red brass alloy
Connection size	1-1/2" top spud
End connection	1" sweat solder inlet, 1-1/2" spud outlet
Pressure Rating	25 psi (flowing) - 80 psi (static)
Flow Rate	1.6/1.1 gpf (6.0/4.2 Lpf)
Finish	Chrome.

Also cataloged as: 6065761.002
