DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard6066121

American Standard Toilet Flush Valve (Ultima Selectronic). Model 6066121.002. Piston-type valve with self-cleaning integral wiper spring; PWRX battery system with 480,000 cycle life (10 years); Includes angle stop with back-flow protection and vandal-resistant cap; Includes 1-1/2" high back pressure vacuum breaker. material: Dezincification Resistant brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6066121.pdfData sheet

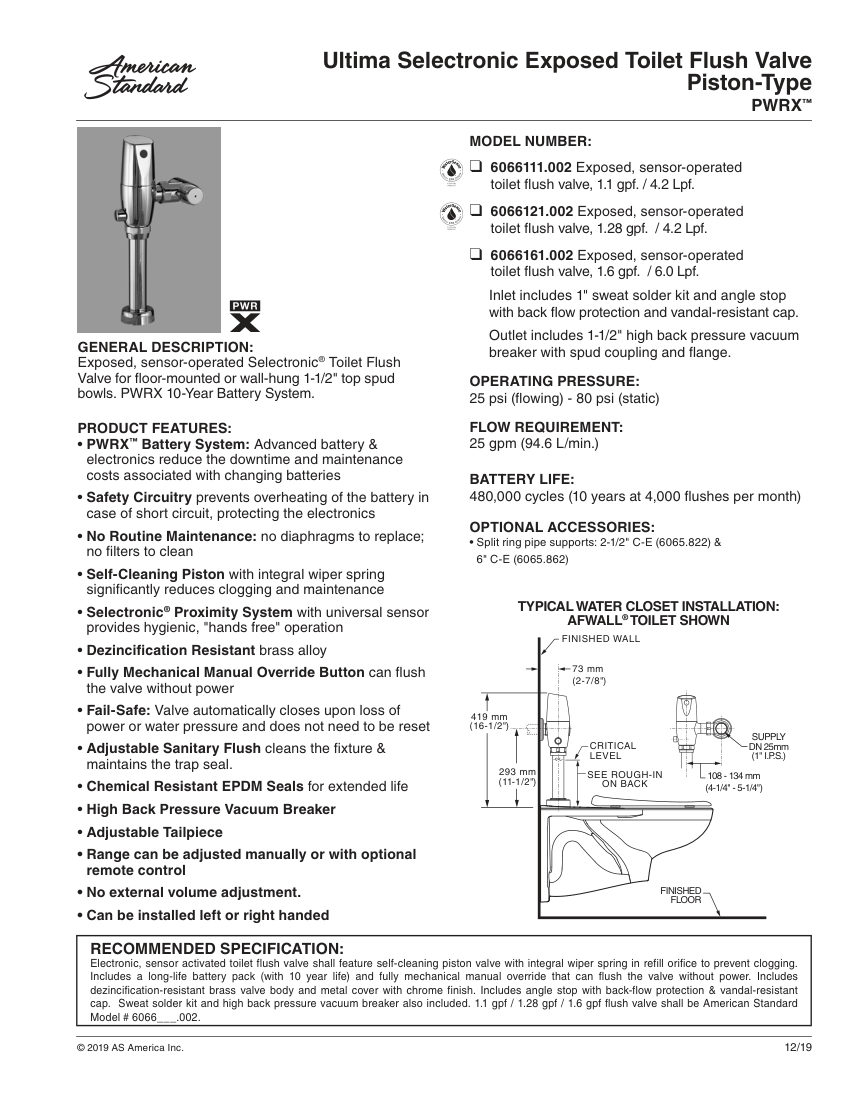

American Standard 6066121 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6066121
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6066121
DescriptionAmerican Standard Toilet Flush Valve (Ultima Selectronic). Model 6066121.002. Piston-type valve with self-cleaning integral wiper spring; PWRX battery system with 480,000 cycle life (10 years); Includes angle stop with back-flow protection and vandal-resistant cap; Includes 1-1/2" high back pressure vacuum breaker. material: Dezincification Resistant brass alloy
Connection size1-1/2" top spud
End connection1" sweat solder inlet, 1-1/2" outlet
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.28 gpf / 4.8 Lpf
FinishChrome.

Also cataloged as: 6066121.002
