DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard6066761

American Standard Toilet Flush Valve (Ultima Selectronic). Model 6066761.002. Piston-Type valve with self-cleaning integral wiper spring; PWRX 10-Year Battery System with 480,000 cycle life

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6066761.pdfData sheet

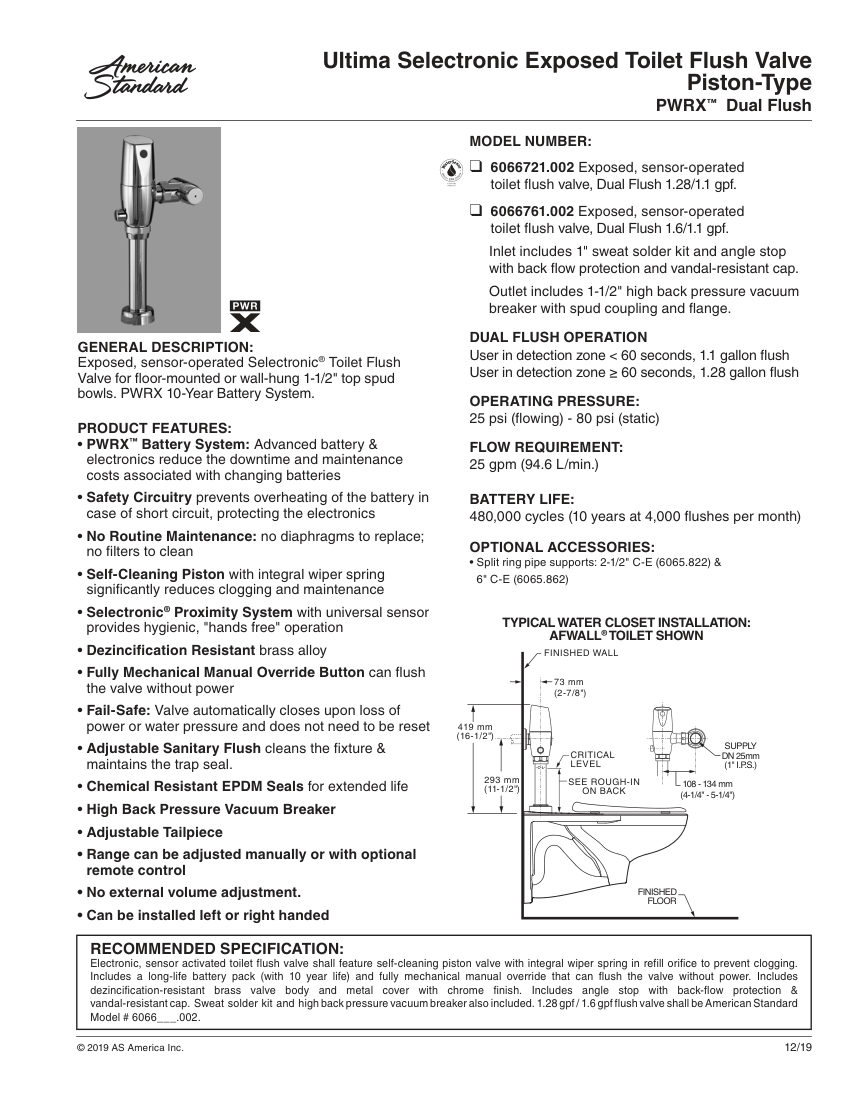

American Standard 6066761 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6066761
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6066761
DescriptionAmerican Standard Toilet Flush Valve (Ultima Selectronic). Model 6066761.002. Piston-Type valve with self-cleaning integral wiper spring; PWRX 10-Year Battery System with 480,000 cycle life
Dual Flush operation1.1 gpf (<60s) and 1.6 gpf (≥60s); Includes 1" sweat solder kit and angle stop with back flow protection. material: Dezincification Resistant brass alloy
Connection size1-1/2" top spud
End connection1" sweat solder inlet, 1-1/2" outlet
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6/1.1 gpf (6.0/4.2 Lpf)
FinishChrome.

Also cataloged as: 6066761.002
