DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard6067121

American Standard Sensor Operated Toilet Flush Valve (Selectronic FloWise). Model 6067.121.002. Hard-wired AC powered with UL-approved transformer; Self-cleaning piston operation with integral wiper spring; Fully mechanical manual override button for power outages; Vandal-resistant metal cover plate with no visible fasteners. material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6067121.pdfData sheet

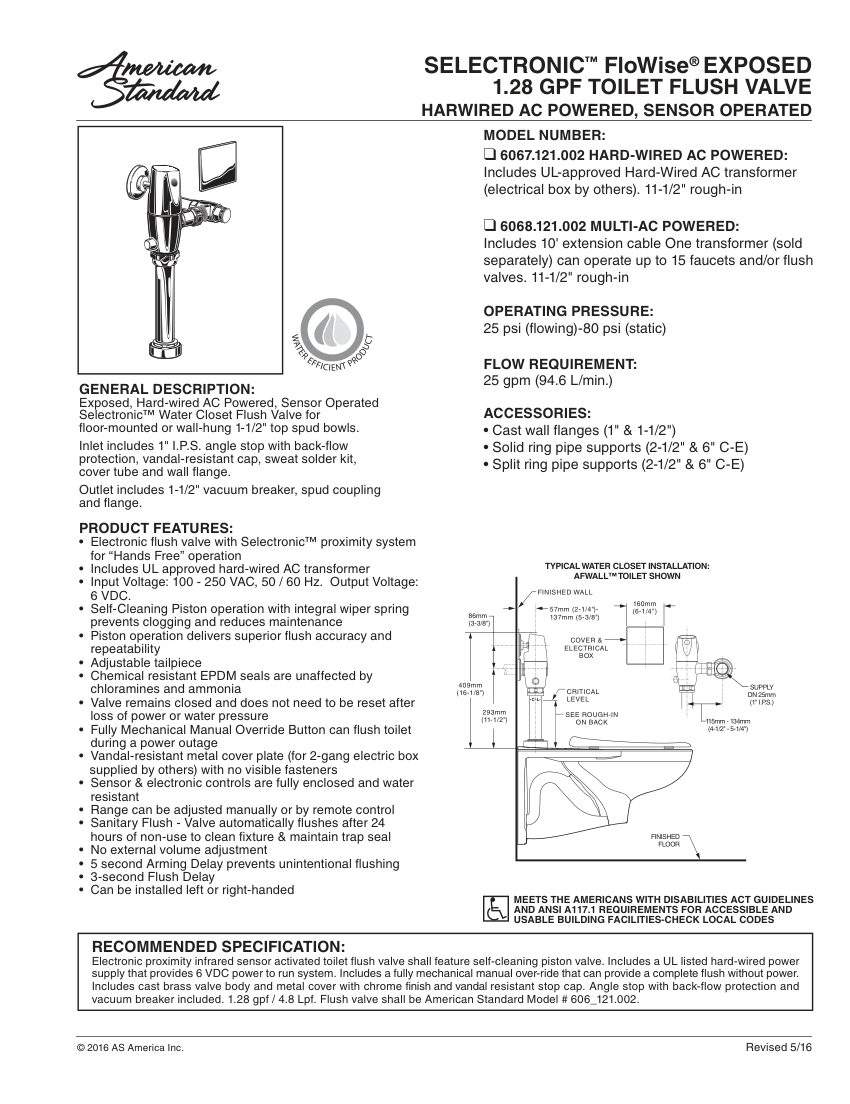

American Standard 6067121 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6067121
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6067121
DescriptionAmerican Standard Sensor Operated Toilet Flush Valve (Selectronic FloWise). Model 6067.121.002. Hard-wired AC powered with UL-approved transformer; Self-cleaning piston operation with integral wiper spring; Fully mechanical manual override button for power outages; Vandal-resistant metal cover plate with no visible fasteners. material: Cast brass
Connection size1" I.P.S. inlet, 1-1/2" top spud outlet
End connectionSweat solder kit included
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.28 GPF
FinishChrome.

Also cataloged as: 6067121.002
