DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American Standard6067362

American Standard Concealed Sensor Operated Toilet Flush Valve (Flush Valves). Model 6067.362.007. Sensor operated with fully mechanical manual override; Fail-safe design closes valve on power or water loss; Includes 1-1/2" vacuum breaker with spud coupling; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel wall box

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6067362.pdfData sheet

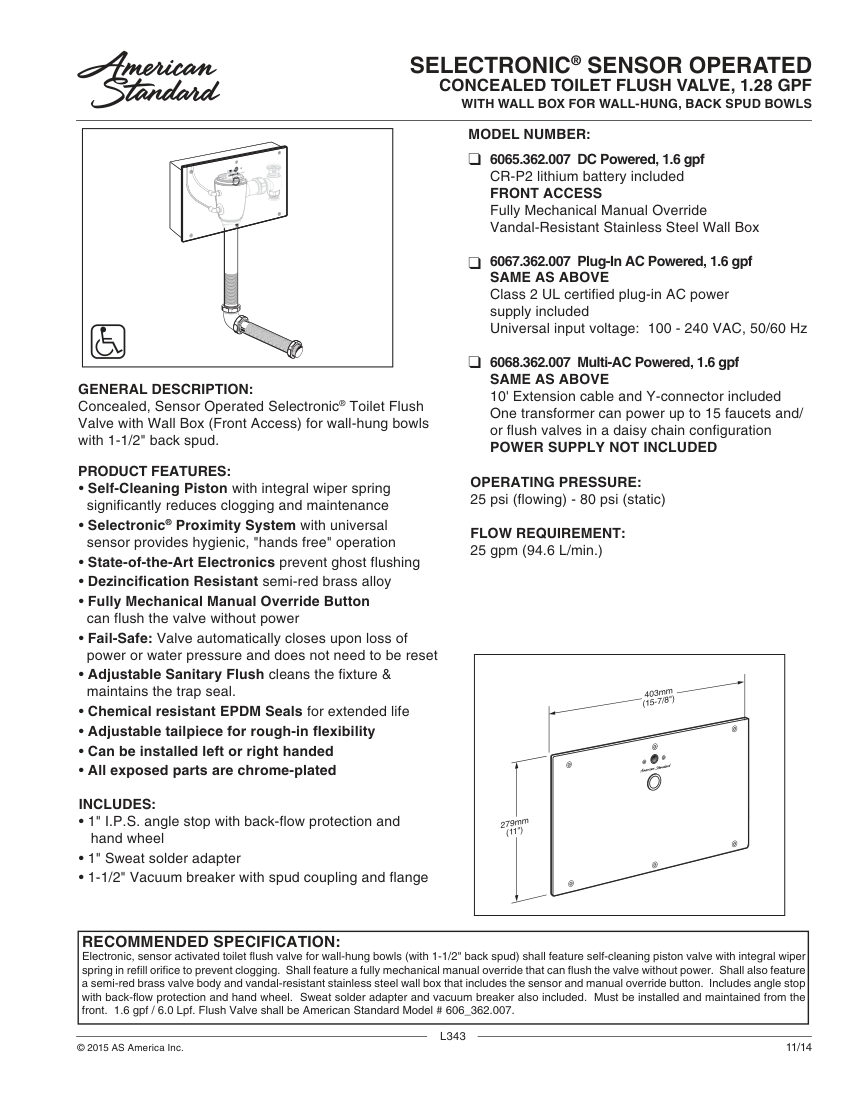

American Standard 6067362 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6067362
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6067362
DescriptionAmerican Standard Concealed Sensor Operated Toilet Flush Valve (Flush Valves). Model 6067.362.007. Sensor operated with fully mechanical manual override; Fail-safe design closes valve on power or water loss; Includes 1-1/2" vacuum breaker with spud coupling; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel wall box
Connection size1-1/2" Back Spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf
FinishChrome-plated.

Also cataloged as: 6067362.007
