DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American StandardExposed Selectronic AC Toilet Dual Flush 1.6 / 1.1 gpf Flush Valve6067761

American Standard Toilet Flush Valve (Selectronic FloWise). Model 6067.761.002. Dual flush: 1.1 gpf (light) or 1.6 gpf (standard) based on detection time; Sensor-operated with hands-free operation; Hard-wired AC powered with UL-approved transformer; Self-cleaning piston operation with integral wiper spring. connectionSize: 1" I.P.S. inlet, 1-1/2" top spud outlet

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6067761.pdfData sheet

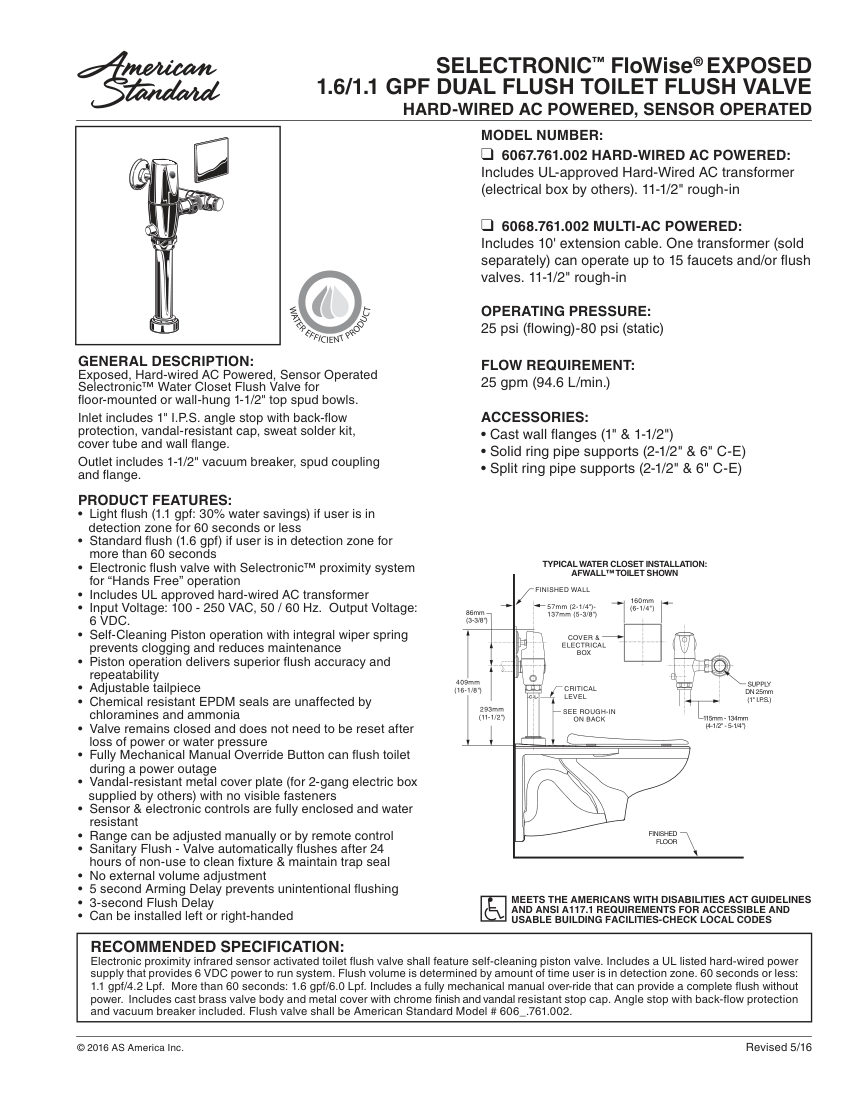

American Standard 6067761 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6067761
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6067761
DescriptionAmerican Standard Toilet Flush Valve (Selectronic FloWise). Model 6067.761.002. Dual flush: 1.1 gpf (light) or 1.6 gpf (standard) based on detection time; Sensor-operated with hands-free operation; Hard-wired AC powered with UL-approved transformer; Self-cleaning piston operation with integral wiper spring. connectionSize: 1" I.P.S. inlet, 1-1/2" top spud outlet
End connectionSweat solder kit included
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 / 1.1 gpf
MountingExposed, floor-mounted or wall-hung
Dimensions11-1/2" rough-in.

Also cataloged as: 6067761.002
