DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American StandardConcealed Selectronic Back Spud Toilet 1.28 gpf Flush Valve6068221

American Standard Concealed Toilet Flush Valve (Selectronic). Model 6068.221.007. Sensor operated with fully mechanical manual override; Multi-AC powered with 10' extension cable and Y-connector included; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve upon loss of power or pressure. material: Semi-red brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6068221.pdfData sheet

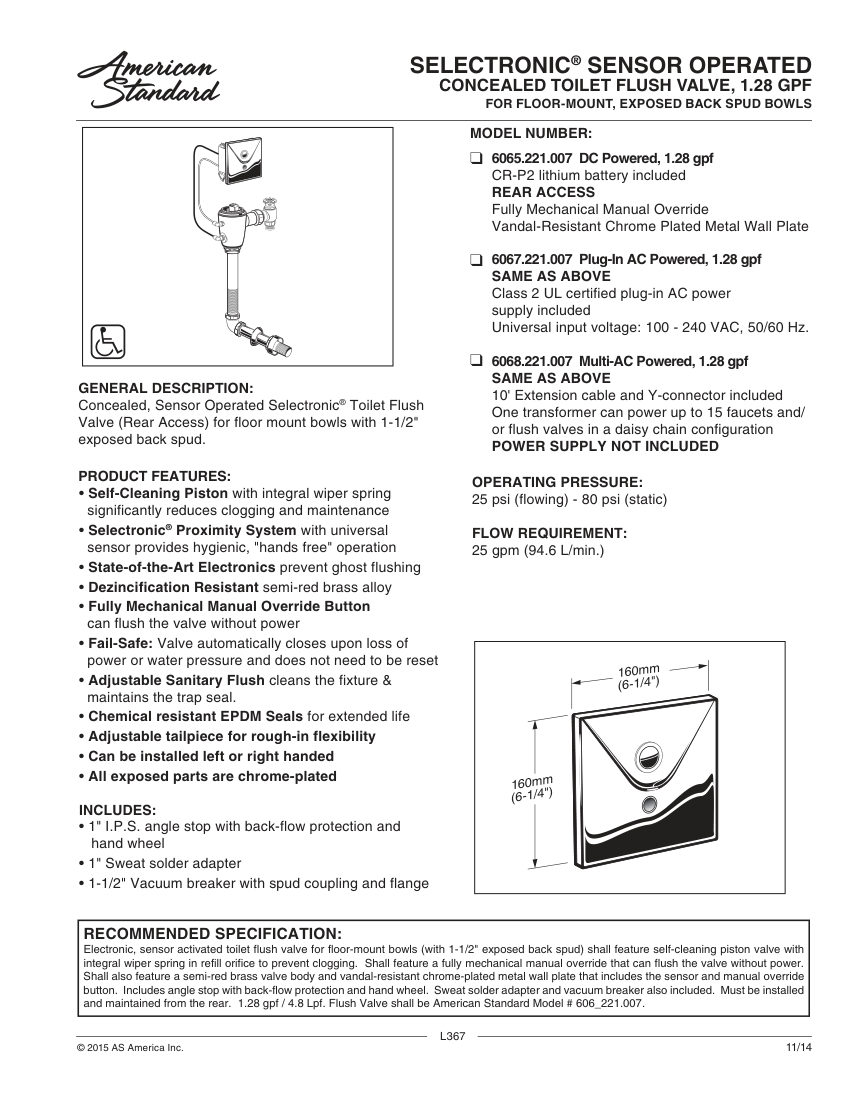

American Standard 6068221 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6068221
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6068221
DescriptionAmerican Standard Concealed Toilet Flush Valve (Selectronic). Model 6068.221.007. Sensor operated with fully mechanical manual override; Multi-AC powered with 10' extension cable and Y-connector included; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve upon loss of power or pressure. material: Semi-red brass alloy
Connection size1-1/2" exposed back spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.28 gpf
FinishChrome-plated.

Also cataloged as: 6068221.007
