DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American StandardConcealed Flushometer for 1-1/2" Wall-Mount Back Spud Bowls6068222

American Standard Concealed Sensor Operated Toilet Flush Valve (Flush Valves). Model 6068.222.007. Sensor operated with Selectronic® Proximity System; Fully mechanical manual override button; Fail-safe design closes valve on power or water loss; Includes 1-1/2" vacuum breaker with spud coupling. material: Semi-red brass alloy, Chrome-plated metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6068222.pdfData sheet

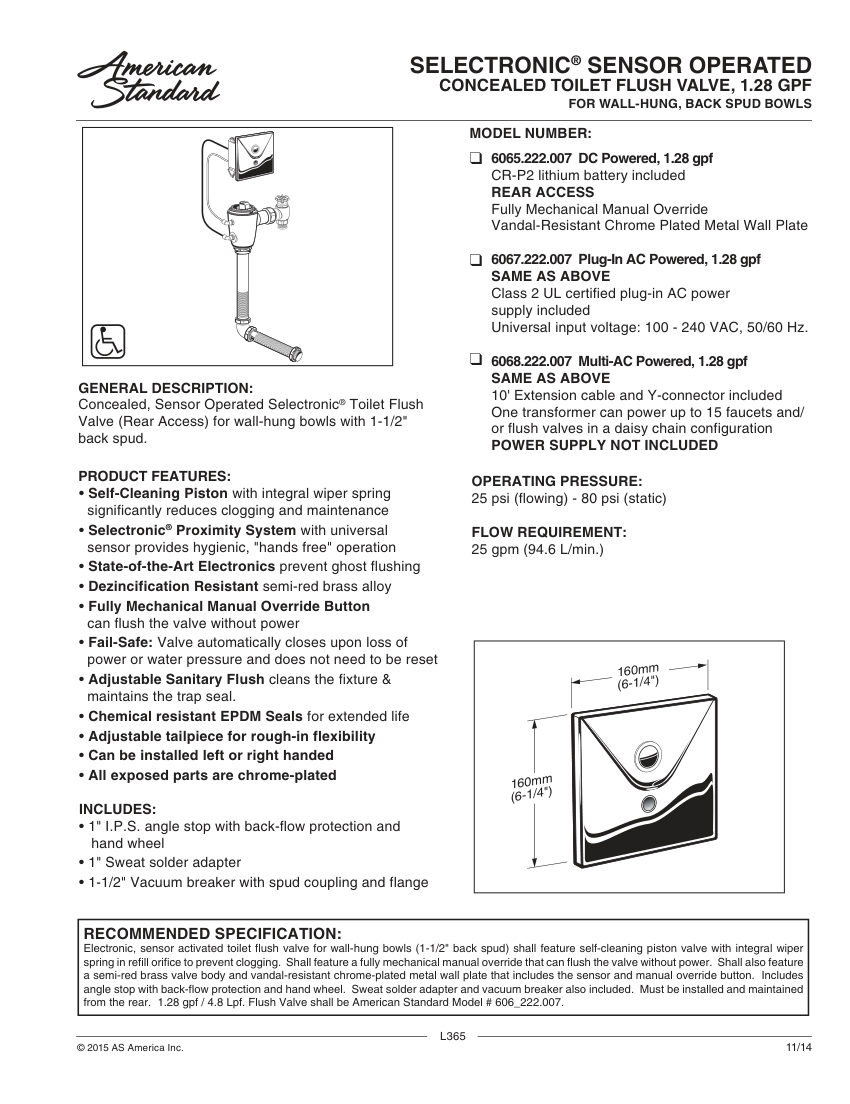

American Standard 6068222 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6068222
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6068222
DescriptionAmerican Standard Concealed Sensor Operated Toilet Flush Valve (Flush Valves). Model 6068.222.007. Sensor operated with Selectronic® Proximity System; Fully mechanical manual override button; Fail-safe design closes valve on power or water loss; Includes 1-1/2" vacuum breaker with spud coupling. material: Semi-red brass alloy, Chrome-plated metal
Connection size1-1/2" Back Spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.28 gpf (4.8 Lpf)
FinishChrome.

Also cataloged as: 6068222.007

  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click

From fixture schedule to submittal in minutes.

How the Builder works →
  1. 01

    Describe the job

    Paste a fixture schedule, upload a spec section, or just list catalog numbers and quantities.

  2. 02

    The agent matches & assembles

    Products are matched from the indexed library and current cut sheets are pulled into a formatted package with cover and TOC.

  3. 03

    Share for review

    Send one link for sign-off, then roll the approved package into a quote or PO without retyping a part number.
