DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American StandardConcealed Flushometer for 1-1/2" Top Spud Bowls - 1.6 GPF6068263

American Standard Concealed Sensor Operated Toilet Flush Valve (Flush Valves). Model 6068.263.007. Sensor operated with Selectronic Proximity System; Fully mechanical manual override button; Fail-safe design closes valve on power or water loss; Includes 10' extension cable and Y-connector. material: Semi-red brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6068263.pdfData sheet

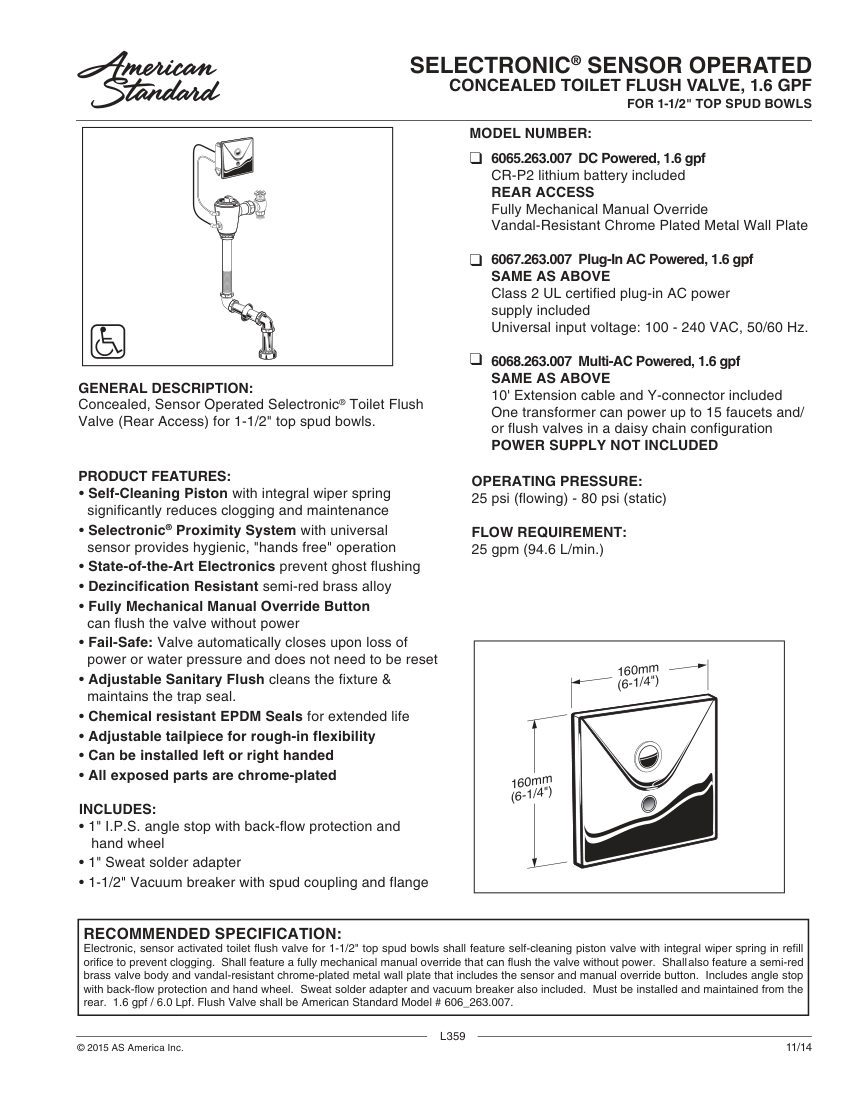

American Standard 6068263 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6068263
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6068263
DescriptionAmerican Standard Concealed Sensor Operated Toilet Flush Valve (Flush Valves). Model 6068.263.007. Sensor operated with Selectronic Proximity System; Fully mechanical manual override button; Fail-safe design closes valve on power or water loss; Includes 10' extension cable and Y-connector. material: Semi-red brass alloy
Connection size1-1/2" Top Spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter, 1-1/2" Vacuum breaker
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 GPF
FinishChrome Plated.

Also cataloged as: 6068263.007
