DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American Standard6068321

American Standard Concealed Sensor Operated Toilet Flush Valve (Selectronic). Model 6068.321.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power/water loss; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel wall box, Chrome-plated exposed parts

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6068321.pdfData sheet

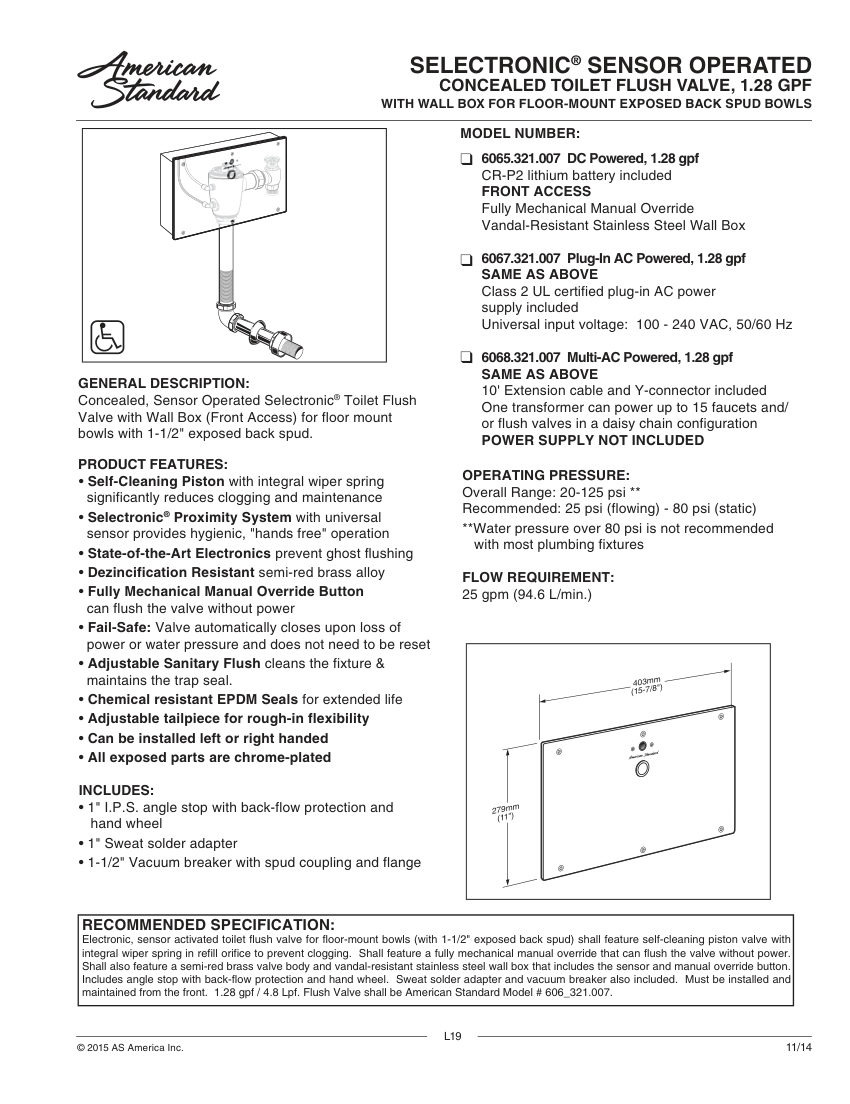

American Standard 6068321 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6068321
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6068321
DescriptionAmerican Standard Concealed Sensor Operated Toilet Flush Valve (Selectronic). Model 6068.321.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power/water loss; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel wall box, Chrome-plated exposed parts
Connection size1-1/2" floor-mount back spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating20-125 psi (Recommended: 25-80 psi)
Flow Rate1.28 gpf (4.8 Lpf)
FinishChrome-plated.

Also cataloged as: 6068321.007
