American Standard6068322
American Standard Concealed Toilet Flush Valve (Selectronic). Model 6068.322.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes 1-1/2" vacuum breaker with spud coupling. material: Semi-red brass alloy, Stainless Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 6068322
- Product type
- Plumbing Fixtures
- MasterFormat
- 22

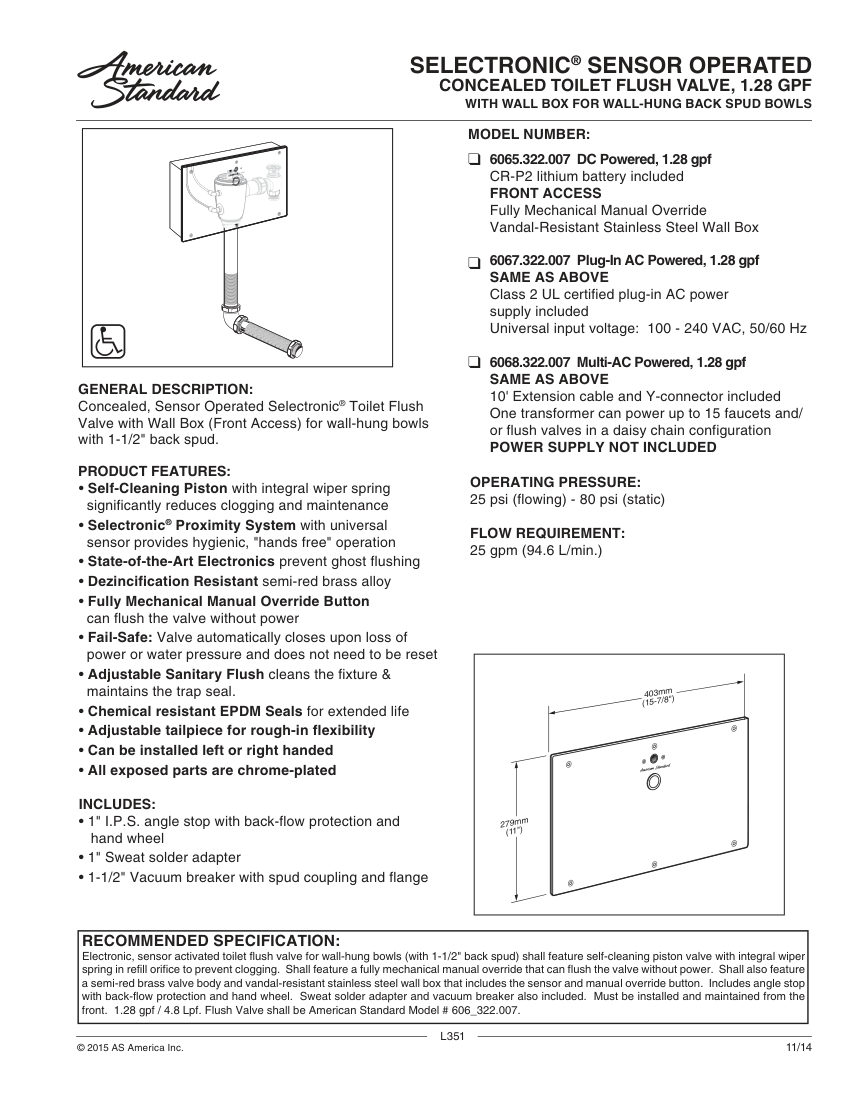

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 6068322 |
|---|---|
| Description | American Standard Concealed Toilet Flush Valve (Selectronic). Model 6068.322.007. Sensor operated with fully mechanical manual override; Self-cleaning piston with integral wiper spring; Fail-safe design closes valve on power or water loss; Includes 1-1/2" vacuum breaker with spud coupling. material: Semi-red brass alloy, Stainless Steel |
| Connection size | 1-1/2" Back Spud |
| End connection | 1" I.P.S. Angle Stop, 1" Sweat Solder Adapter |
| Pressure Rating | 25 psi (flowing) - 80 psi (static) |
| Flow Rate | 1.28 gpf (4.8 Lpf) |
| Finish | Chrome-plated. |
Also cataloged as: 6068322.007
