DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American Standard6068362

American Standard Concealed Sensor Operated Flushometer (Toilet Flush Valve). Model 6068.362.007. Sensor operated with Selectronic Proximity System; Fully mechanical manual override button; Self-cleaning piston with integral wiper spring; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel wall box

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6068362.pdfData sheet

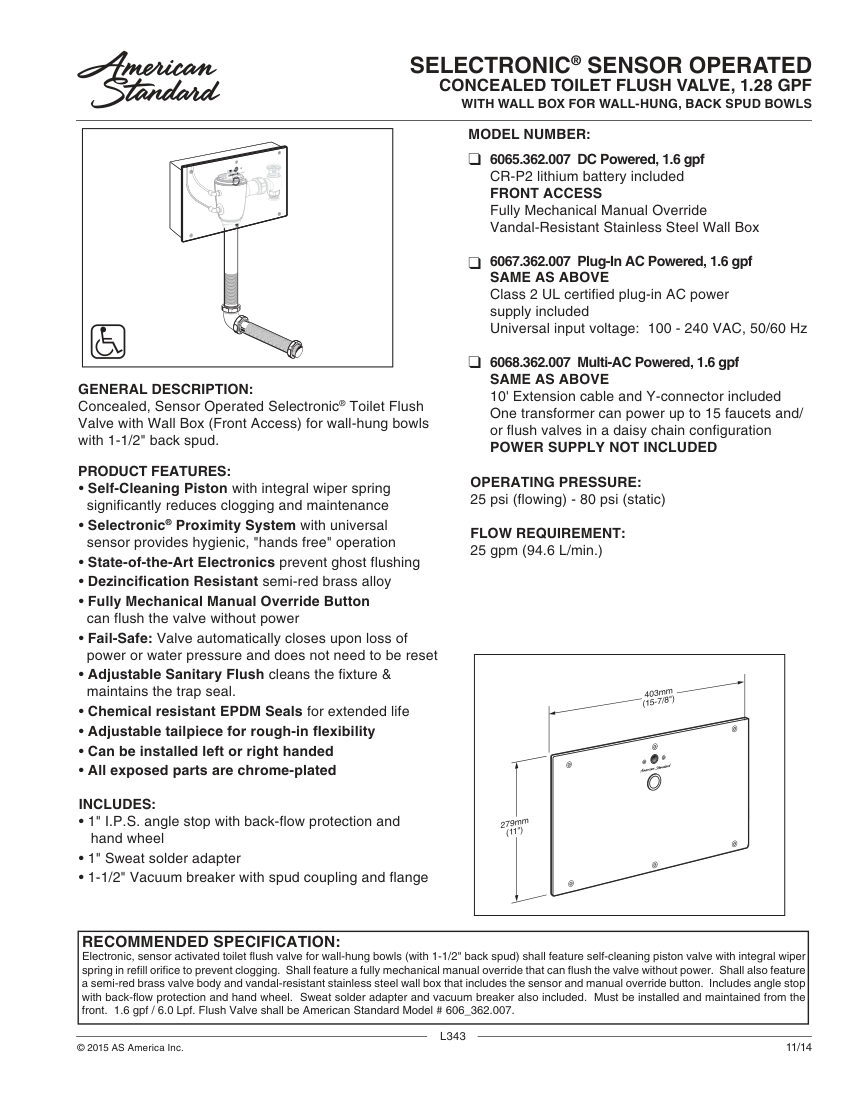

American Standard 6068362 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6068362
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6068362
DescriptionAmerican Standard Concealed Sensor Operated Flushometer (Toilet Flush Valve). Model 6068.362.007. Sensor operated with Selectronic Proximity System; Fully mechanical manual override button; Self-cleaning piston with integral wiper spring; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel wall box
Connection size1-1/2" Back Spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf
FinishChrome-plated.

Also cataloged as: 6068362.007
