DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American Standard6068363

American Standard Concealed Toilet Flush Valve (Selectronic). Model 6068.363.007. Sensor operated with fully mechanical manual override; Multi-AC powered with 10' extension cable and Y-connector included; Self-cleaning piston with integral wiper spring; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6068363.pdfData sheet

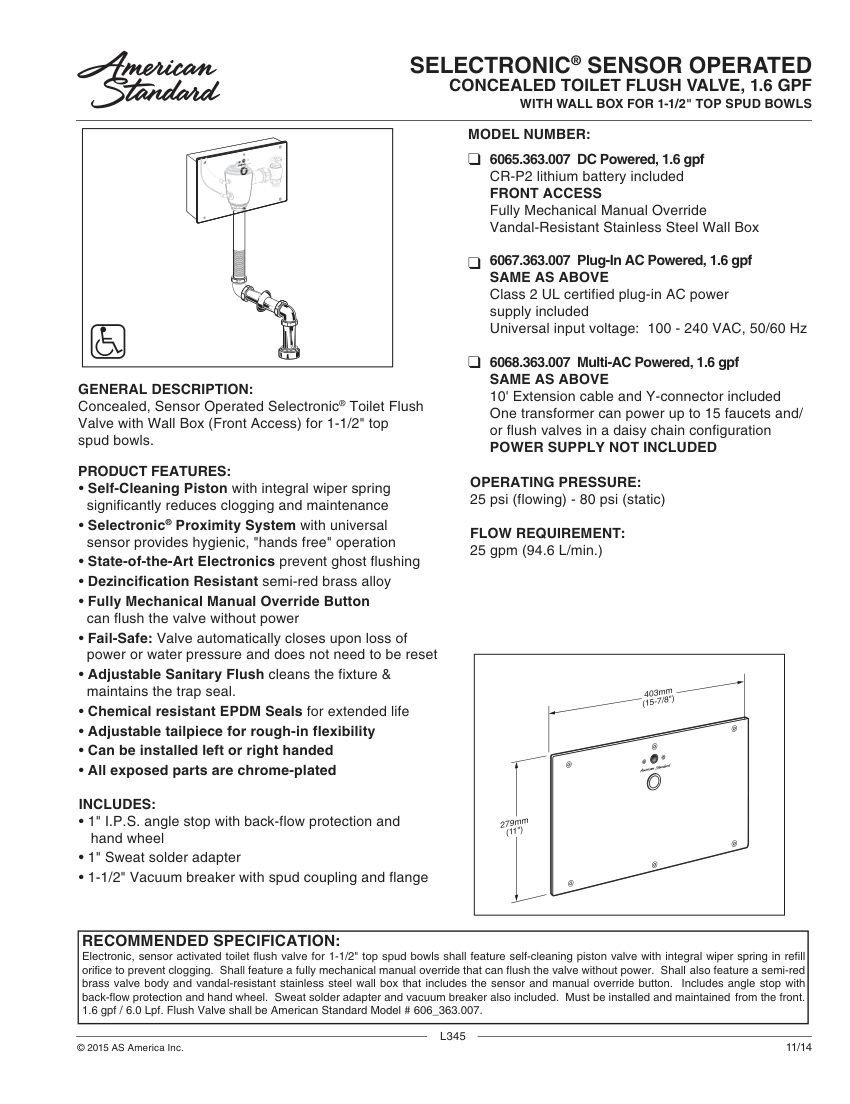

American Standard 6068363 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6068363
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6068363
DescriptionAmerican Standard Concealed Toilet Flush Valve (Selectronic). Model 6068.363.007. Sensor operated with fully mechanical manual override; Multi-AC powered with 10' extension cable and Y-connector included; Self-cleaning piston with integral wiper spring; Vandal-resistant stainless steel wall box. material: Semi-red brass alloy, Stainless Steel
Connection size1-1/2" Top Spud
End connection1" I.P.S. angle stop, 1" Sweat solder adapter
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 GPF
FinishChrome-plated.

Also cataloged as: 6068363.007
