DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American StandardExposed AC Toilet Flushometer for 1-1/2" Top Spud Bowls6068761

American Standard Toilet Flush Valve (Selectronic). Model 6068.761.002. Dual flush operation: 1.1 gpf for <60s, 1.6 gpf for ≥60s; Hard-wired AC powered with Class 2 UL certified transformer; Self-cleaning piston with integral wiper spring; Fail-safe: closes upon loss of power or water pressure. material: Dezincification Resistant semi-red brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6068761.pdfData sheet

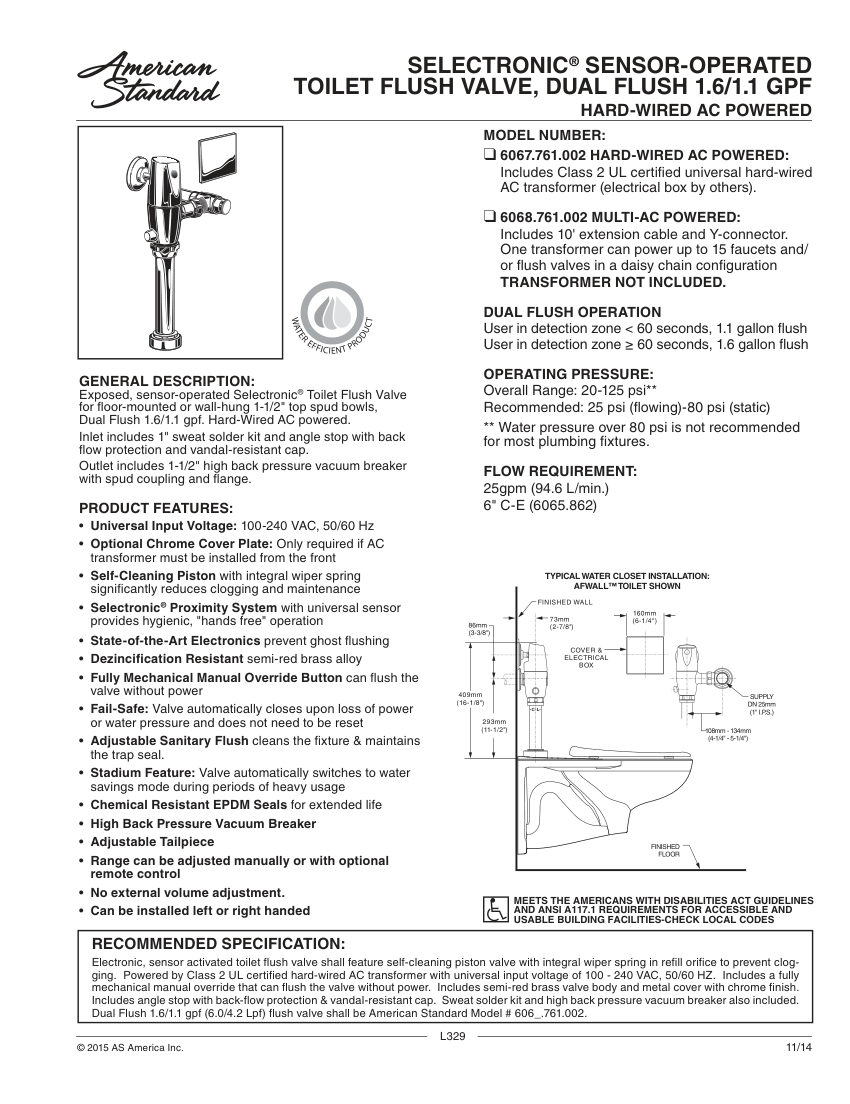

American Standard 6068761 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6068761
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6068761
DescriptionAmerican Standard Toilet Flush Valve (Selectronic). Model 6068.761.002. Dual flush operation: 1.1 gpf for <60s, 1.6 gpf for ≥60s; Hard-wired AC powered with Class 2 UL certified transformer; Self-cleaning piston with integral wiper spring; Fail-safe: closes upon loss of power or water pressure. material: Dezincification Resistant semi-red brass alloy
Connection size1-1/2" top spud
End connection1" sweat solder inlet, 1-1/2" high back pressure vacuum breaker outlet
Pressure Rating20-125 psi
Flow Rate1.6/1.1 gpf
MountingExposed.

Also cataloged as: 6068761.002
