American StandardSelectronic Sensor Operated Urinal Flush Valve Piston-Type 0.125 GPF606B201

American Standard Sensor Operated Urinal Flush Valve (Selectronic). Model 606B201. Piston-Type valve with self-cleaning integral wiper spring; Fully mechanical manual override button; Pressure Compensation feature for accurate flush volume; Includes 3/4" angle stop with back-flow protection and vacuum breaker. material: Dezincification Resistant brass alloy, Chrome-plated metal wall plate, EPDM Seals

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF606B201.pdfData sheet

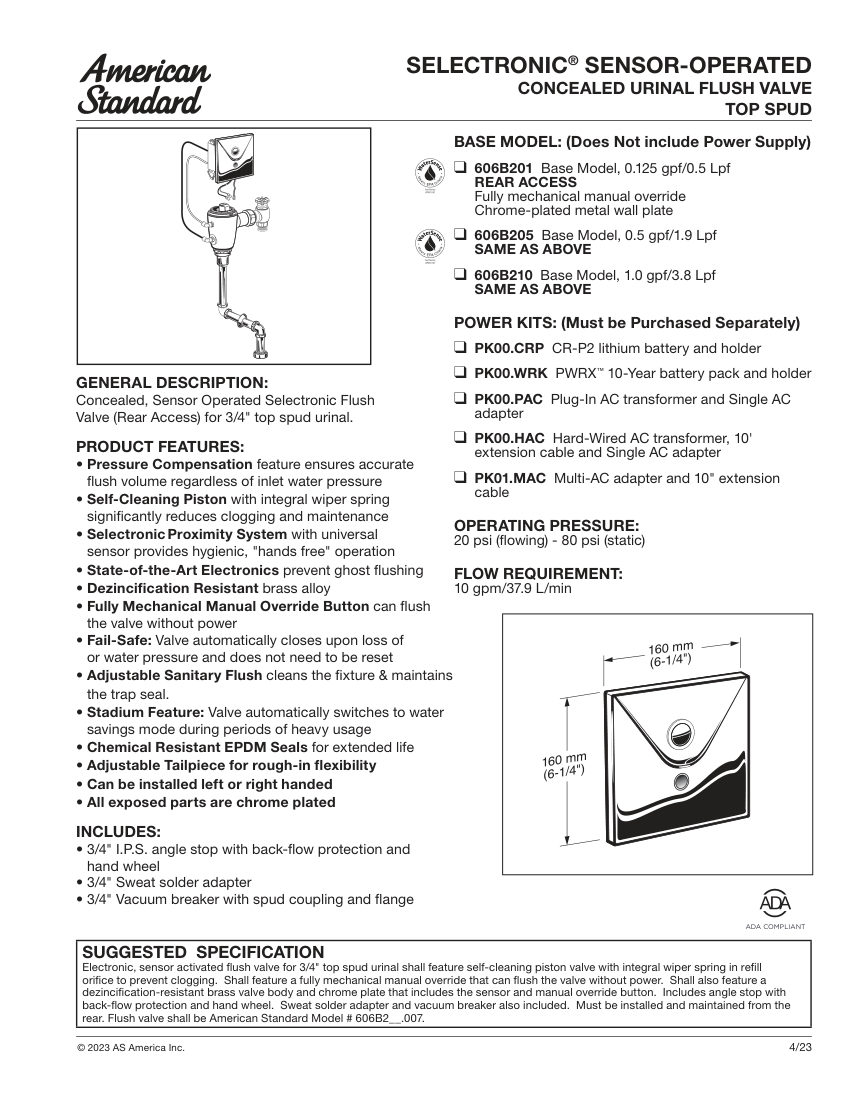

American Standard 606B201 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
606B201
Product type
Urinals
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number606B201
DescriptionAmerican Standard Sensor Operated Urinal Flush Valve (Selectronic). Model 606B201. Piston-Type valve with self-cleaning integral wiper spring; Fully mechanical manual override button; Pressure Compensation feature for accurate flush volume; Includes 3/4" angle stop with back-flow protection and vacuum breaker. material: Dezincification Resistant brass alloy, Chrome-plated metal wall plate, EPDM Seals
Connection size3/4" I.P.S.
End connectionTop Spud
Pressure Rating20 psi (flowing) - 80 psi (static)
Flow Rate0.125 gpf/0.5 Lpf
FinishChrome-plated.

Also cataloged as: 606B201.007
