DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American StandardSelectronic Sensor Operated Toilet Flush Valve Piston-Type 1.6 GPF606B263

American Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 606B263. 1.6 gpf/6.0 Lpf flush volume; Self-cleaning piston with integral wiper spring; Fully mechanical manual override; Fail-safe: closes upon loss of power or water pressure. material: Dezincification Resistant brass alloy, Chrome-plated metal wall plate, EPDM Seals

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF606B263.pdfData sheet

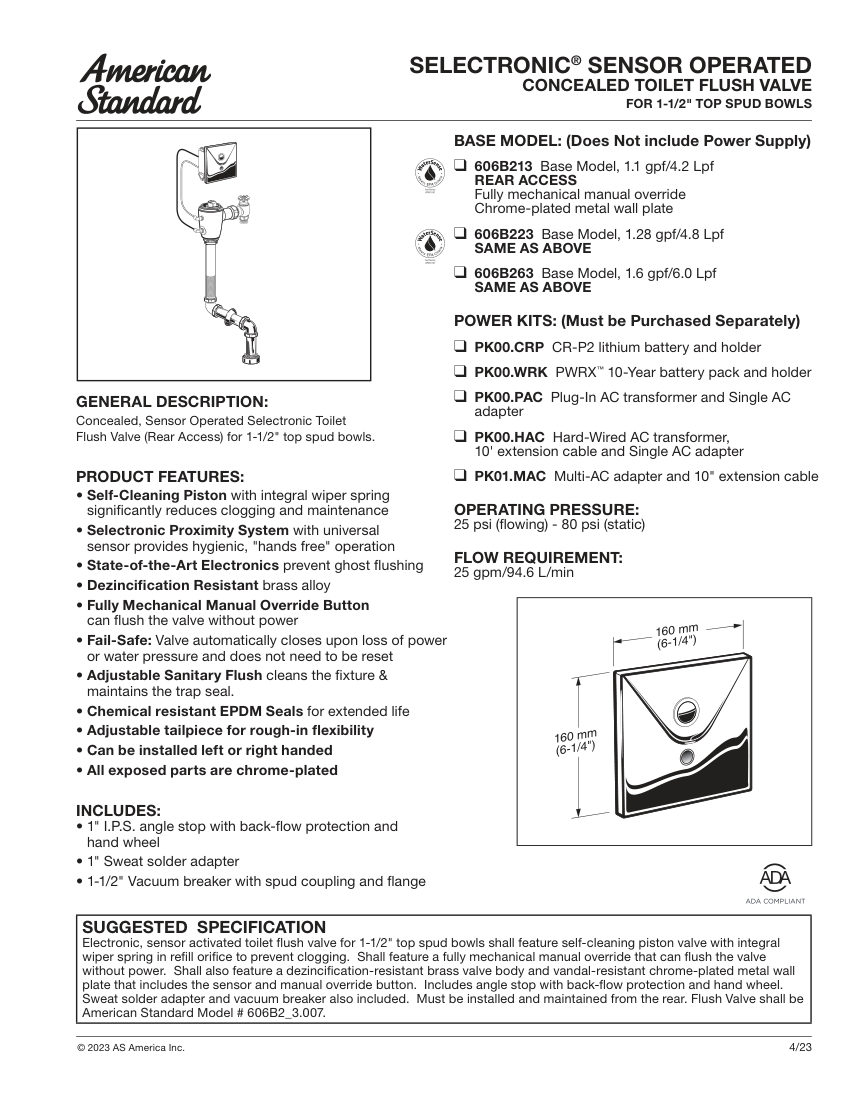

American Standard 606B263 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
606B263
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number606B263
DescriptionAmerican Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 606B263. 1.6 gpf/6.0 Lpf flush volume; Self-cleaning piston with integral wiper spring; Fully mechanical manual override; Fail-safe: closes upon loss of power or water pressure. material: Dezincification Resistant brass alloy, Chrome-plated metal wall plate, EPDM Seals
Connection size1-1/2" top spud, 1" I.P.S. angle stop
End connectionSweat solder adapter, Vacuum breaker with spud coupling
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf/6.0 Lpf
FinishChrome-plated.

Also cataloged as: 606B263.007
