DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard606B311

American Standard Concealed Toilet Flush Valve with Wall Box (Toilet Flush Valve). Model 606B311. Piston-type valve with self-cleaning integral wiper spring; Selectronic Proximity System with universal sensor; Fully mechanical manual override button; Fail-safe design closes automatically on power or water loss. material: Dezincification Resistant brass alloy, stainless steel wall box

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF606B311.pdfData sheet

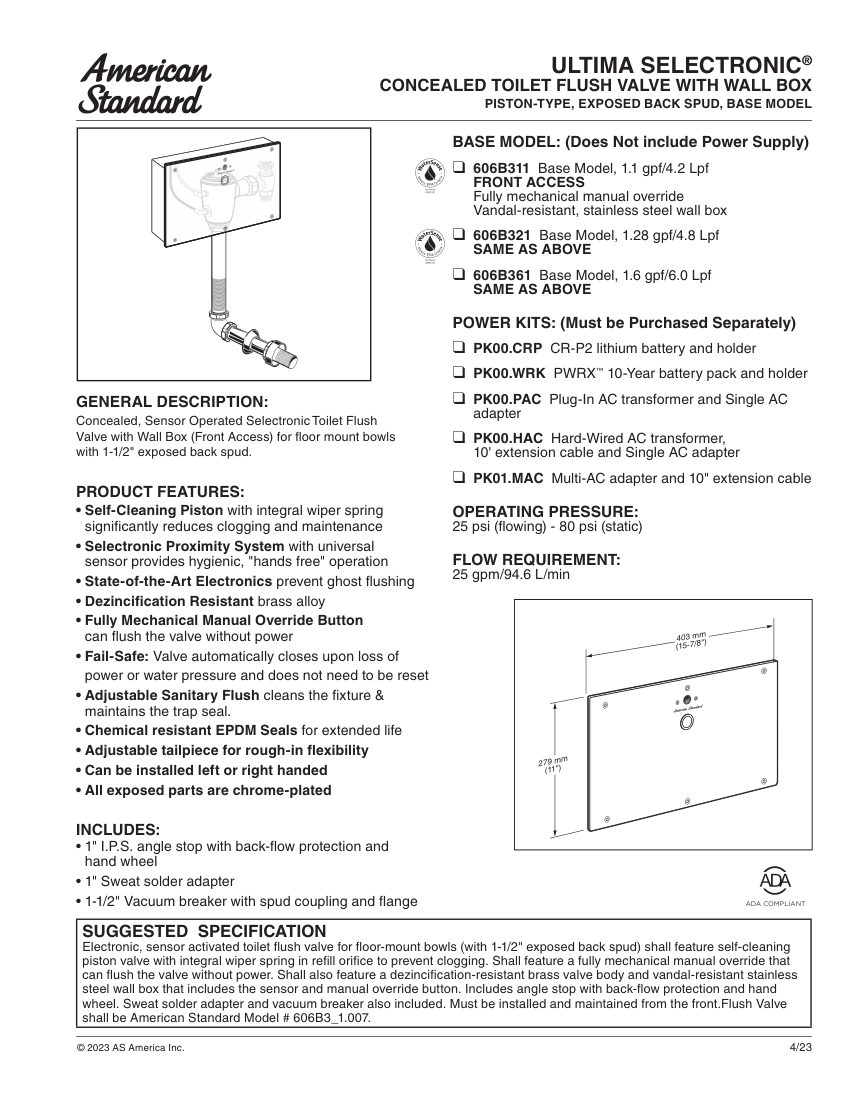

American Standard 606B311 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
606B311
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number606B311
DescriptionAmerican Standard Concealed Toilet Flush Valve with Wall Box (Toilet Flush Valve). Model 606B311. Piston-type valve with self-cleaning integral wiper spring; Selectronic Proximity System with universal sensor; Fully mechanical manual override button; Fail-safe design closes automatically on power or water loss. material: Dezincification Resistant brass alloy, stainless steel wall box
Connection size1" I.P.S. angle stop, 1-1/2" exposed back spud
End connectionSweat solder adapter, Vacuum breaker
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.1 gpf/4.2 Lpf
FinishChrome-p

Also cataloged as: 606B311.007
