DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard606B363

American Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 606B363. Self-cleaning piston with integral wiper spring; Fully mechanical manual override button; Fail-safe: Valve closes upon loss of power or water pressure; Vandal-resistant stainless steel wall box. material: Dezincification Resistant brass alloy, Stainless steel wall box

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF606B363.pdfData sheet

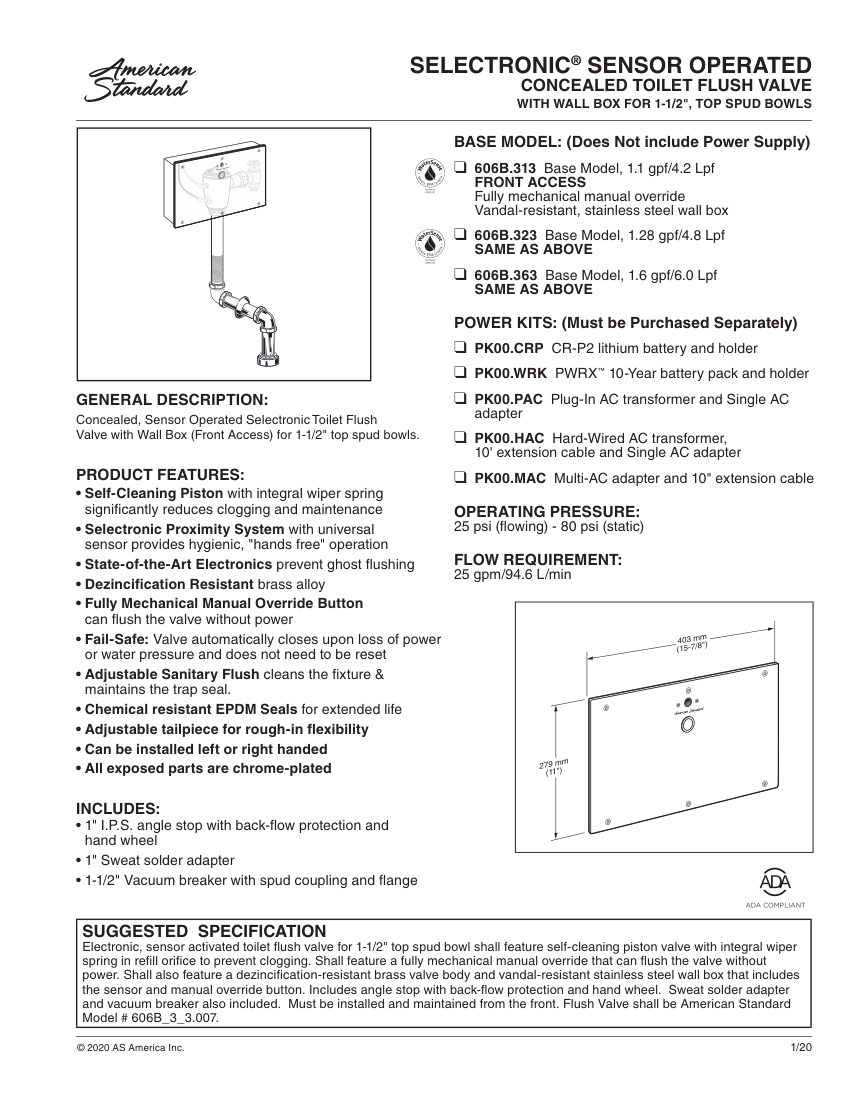

American Standard 606B363 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
606B363
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number606B363
DescriptionAmerican Standard Sensor Operated Concealed Toilet Flush Valve (Selectronic). Model 606B363. Self-cleaning piston with integral wiper spring; Fully mechanical manual override button; Fail-safe: Valve closes upon loss of power or water pressure; Vandal-resistant stainless steel wall box. material: Dezincification Resistant brass alloy, Stainless steel wall box
Connection size1-1/2" top spud, 1" I.P.S. angle stop
End connectionSweat solder adapter, Vacuum breaker
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.6 gpf/6.0 Lpf
FinishChrome-plated.

Also cataloged as: 606B363.007
