American Standard606B721
American Standard Sensor-operated toilet flush valve (Selectronic). Model 606B.721. Dual Flush 1.28/1.1 gpf; Self-Cleaning Piston with integral wiper spring; Fail-Safe: Valve closes upon loss of power; Includes 1" I.P.S. angle stop with back-flow protection. material: Dezincification Resistant brass alloy
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 606B721
- Product type
- Water Closets & Bidets
- MasterFormat
- 22

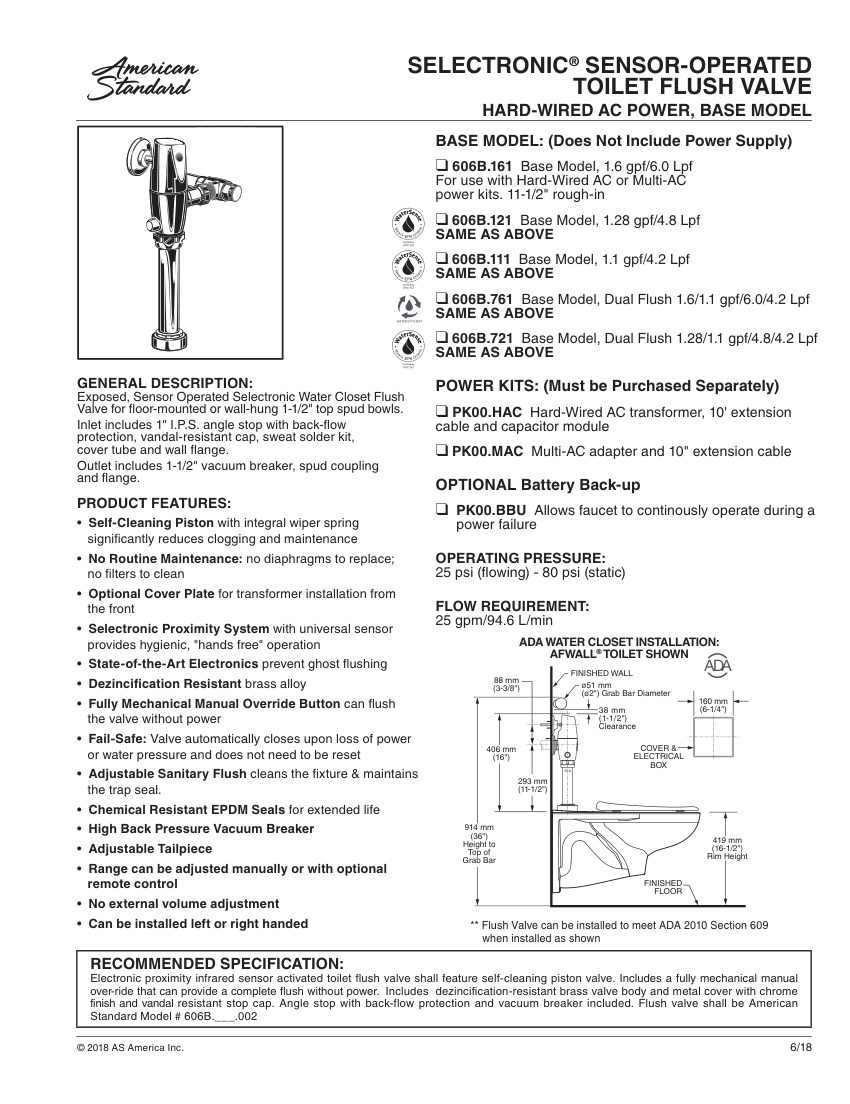

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 606B721 |
|---|---|
| Description | American Standard Sensor-operated toilet flush valve (Selectronic). Model 606B.721. Dual Flush 1.28/1.1 gpf; Self-Cleaning Piston with integral wiper spring; Fail-Safe: Valve closes upon loss of power; Includes 1" I.P.S. angle stop with back-flow protection. material: Dezincification Resistant brass alloy |
| Connection size | 1" I.P.S. inlet, 1-1/2" top spud |
| End connection | Sweat solder kit, spud coupling |
| Pressure Rating | 25 psi (flowing) - 80 psi (static) |
| Flow Rate | 1.28/1.1 gpf (4.8/4.2 Lpf) |
| Mounting | Floor-mounted or wall-hung. |
Also cataloged as: 606B721.002
