DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardMonterrey® Single-Handle Gooseneck Kitchen Faucet 1.5 gpm/5.7 Lpm6114300

American Standard Single-Handle Gooseneck Kitchen Faucet (Monterrey). Model 6114.301. Field-convertible rigid/swivel gooseneck spout; Ceramic disc valve cartridge with integral hot limit safety stop; 1.5 gpm pressure compensating aerator; Lead free (≤ 0.25% total lead content). material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6114300.pdfData sheet

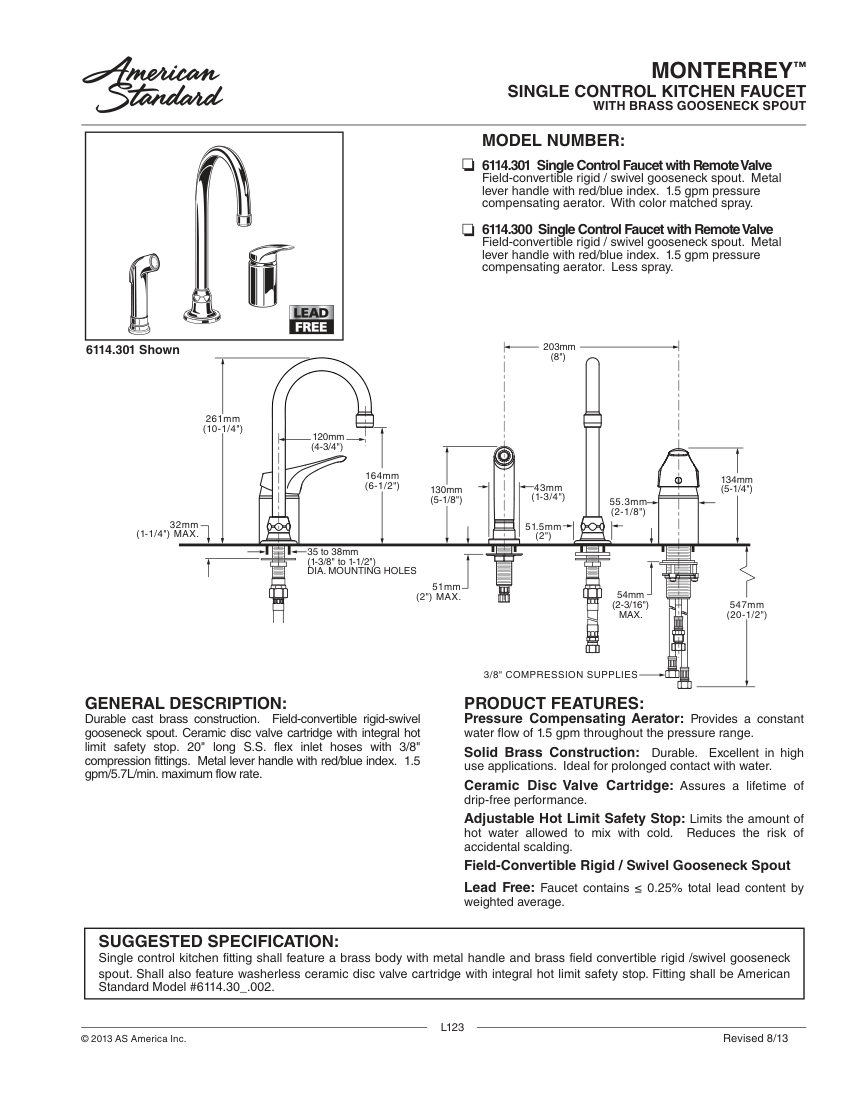

American Standard 6114300 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6114300
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6114300
DescriptionAmerican Standard Single-Handle Gooseneck Kitchen Faucet (Monterrey). Model 6114.301. Field-convertible rigid/swivel gooseneck spout; Ceramic disc valve cartridge with integral hot limit safety stop; 1.5 gpm pressure compensating aerator; Lead free (≤ 0.25% total lead content). material: Cast brass
Connection size3/8" compression
End connection3/8" compression fittings
Flow Rate1.5 gpm / 5.7 L/min
Mounting35 to 38mm (1-3/8" to 1-1/2") DIA. mounting holes
DimensionsHeight 203mm (8"), Spout Reach 164mm (6-1/2").

Also cataloged as: 6114300.002
