DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard6114381

American Standard Single-Handle Gooseneck Kitchen Faucet (Monterrey). Model 6114.381. Field-convertible rigid/swivel gooseneck spout with 8" reach; Ceramic disc valve cartridge with integral hot limit safety stop; Pressure compensating aerator maintains 1.5 gpm flow; Includes color-matched spray and 20" S.S. flex inlet hoses. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6114381.pdfData sheet

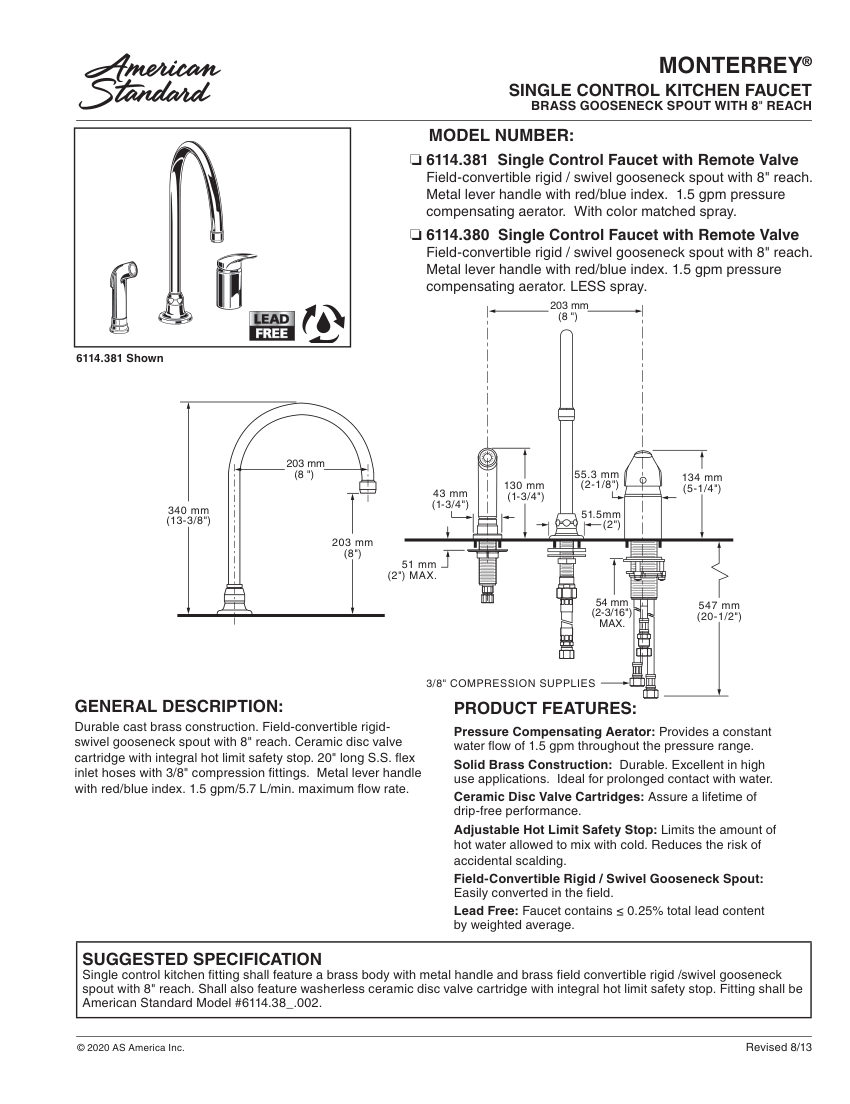

American Standard 6114381 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6114381
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6114381
DescriptionAmerican Standard Single-Handle Gooseneck Kitchen Faucet (Monterrey). Model 6114.381. Field-convertible rigid/swivel gooseneck spout with 8" reach; Ceramic disc valve cartridge with integral hot limit safety stop; Pressure compensating aerator maintains 1.5 gpm flow; Includes color-matched spray and 20" S.S. flex inlet hoses. material: Cast Brass
Connection size3/8" Compression
End connection3/8" Compression Fittings
Flow Rate1.5 gpm / 5.7 L/min
Dimensions8" Reach, 13-3/8" Height
ComplianceASME A112.18.1, CSA B125.1, NSF 61, CALGreen.

Also cataloged as: 6114381.002
