DIV 22 · PLUMBINGLAVATORIES & SINKSCUT SHEET INDEXED

American Standard6147117

American Standard Manual Clinic Sink Flush Valve (Flush Valve). Model 6147117.002. Diaphragm-type manual flush valve for 1-1/2" top spud clinic sinks; Includes 1" I.P.S. angle stop with back-flow prevention and vandal-resistant cap; Features DynaClean wiper spring technology for self-cleaning refill orifice; Includes high back pressure vacuum breaker with down tube. material: Dezincification-resistant cast brass, EvoLast diaphragm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6147117.pdfData sheet

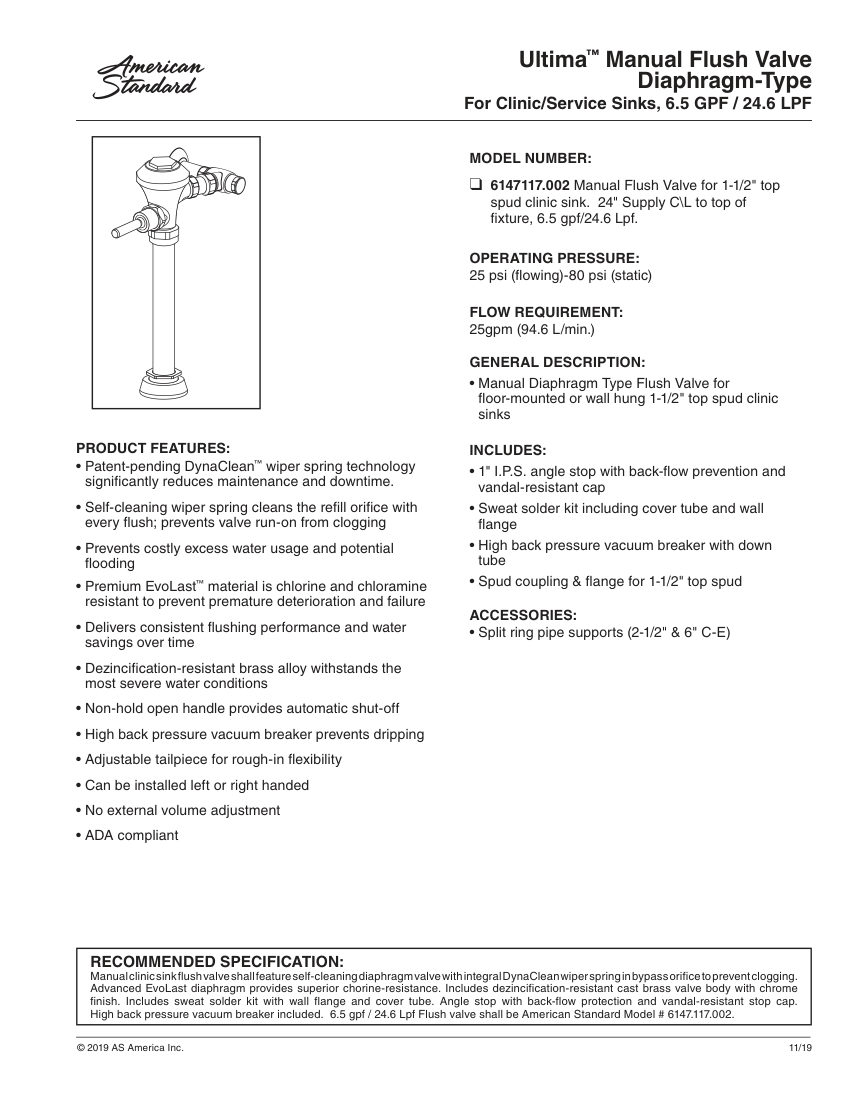

American Standard 6147117 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6147117
Product type
Lavatories & Sinks
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6147117
DescriptionAmerican Standard Manual Clinic Sink Flush Valve (Flush Valve). Model 6147117.002. Diaphragm-type manual flush valve for 1-1/2" top spud clinic sinks; Includes 1" I.P.S. angle stop with back-flow prevention and vandal-resistant cap; Features DynaClean wiper spring technology for self-cleaning refill orifice; Includes high back pressure vacuum breaker with down tube. material: Dezincification-resistant cast brass, EvoLast diaphragm
Connection size1" I.P.S.
End connectionSweat solder
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate6.5 gpf / 24.6 Lpf
FinishChrome.

Also cataloged as: 6147117.002
