DIV 22 · PLUMBINGWATER CLOSETS & BIDETSCUT SHEET INDEXED

American Standard624B121

American Standard Exposed Toilet Flush Valve (Ultima Selectronic). Model 624B121.002. Touchless sensor-operated with programmable detection range; DynaClean self-cleaning wiper spring technology; EvoLast diaphragm material resistant to chloramine; Includes 1" sweat solder kit and angle stop with back flow protection. material: Dezincification-resistant cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF624B121.pdfData sheet

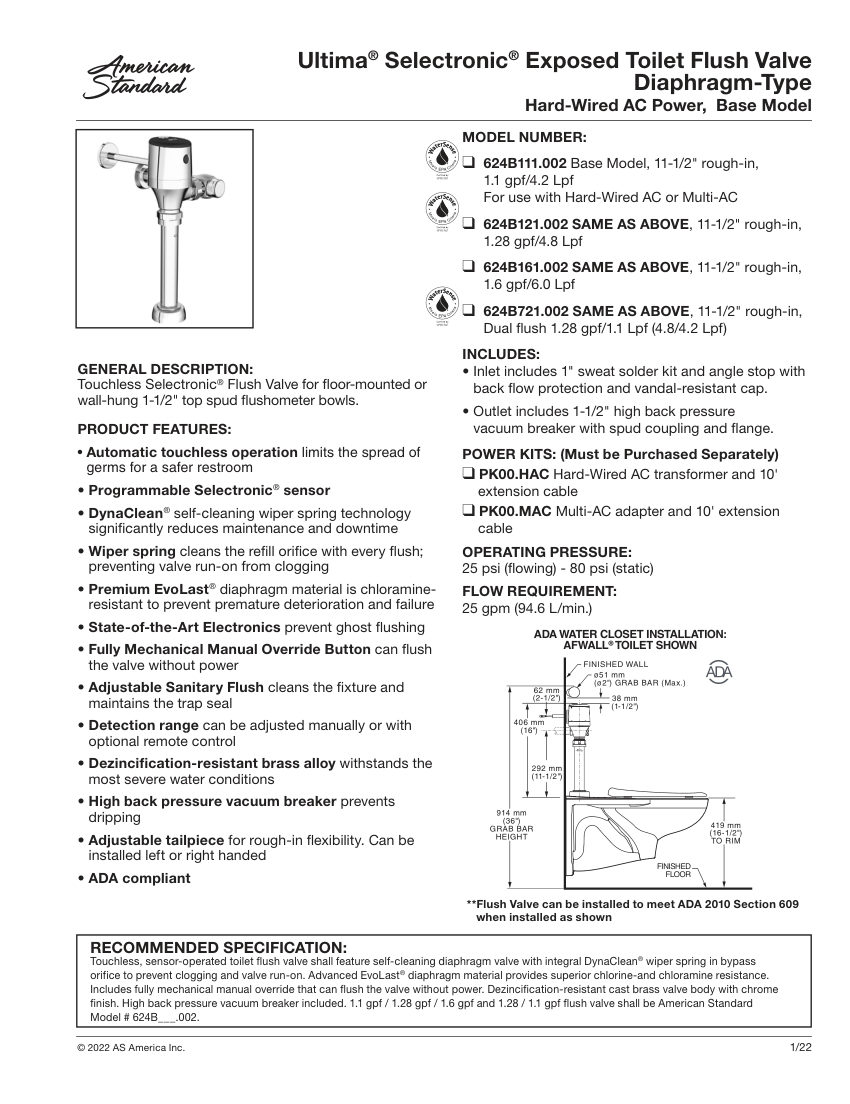

American Standard 624B121 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
624B121
Product type
Water Closets & Bidets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number624B121
DescriptionAmerican Standard Exposed Toilet Flush Valve (Ultima Selectronic). Model 624B121.002. Touchless sensor-operated with programmable detection range; DynaClean self-cleaning wiper spring technology; EvoLast diaphragm material resistant to chloramine; Includes 1" sweat solder kit and angle stop with back flow protection. material: Dezincification-resistant cast brass
Connection size1" inlet, 1-1/2" outlet
End connectionSweat solder (inlet), Spud coupling (outlet)
Pressure Rating25 psi (flowing) - 80 psi (static)
Flow Rate1.28 gpf/4.8 Lpf
FinishChrome.

Also cataloged as: 624B121.002
