American Standard6405170
American Standard Top Mount Kitchen Faucet (Monterrey). Model 6405.171. Field-convertible rigid/swivel gooseneck spout with 5" reach; 1/4 turn ceramic disc valve cartridges; Vandal-resistant metal wrist blade handles with red/blue indexes; 1.5 gpm pressure compensating aerator. material: Cast brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 6405170
- Product type
- Faucets
- MasterFormat
- 22

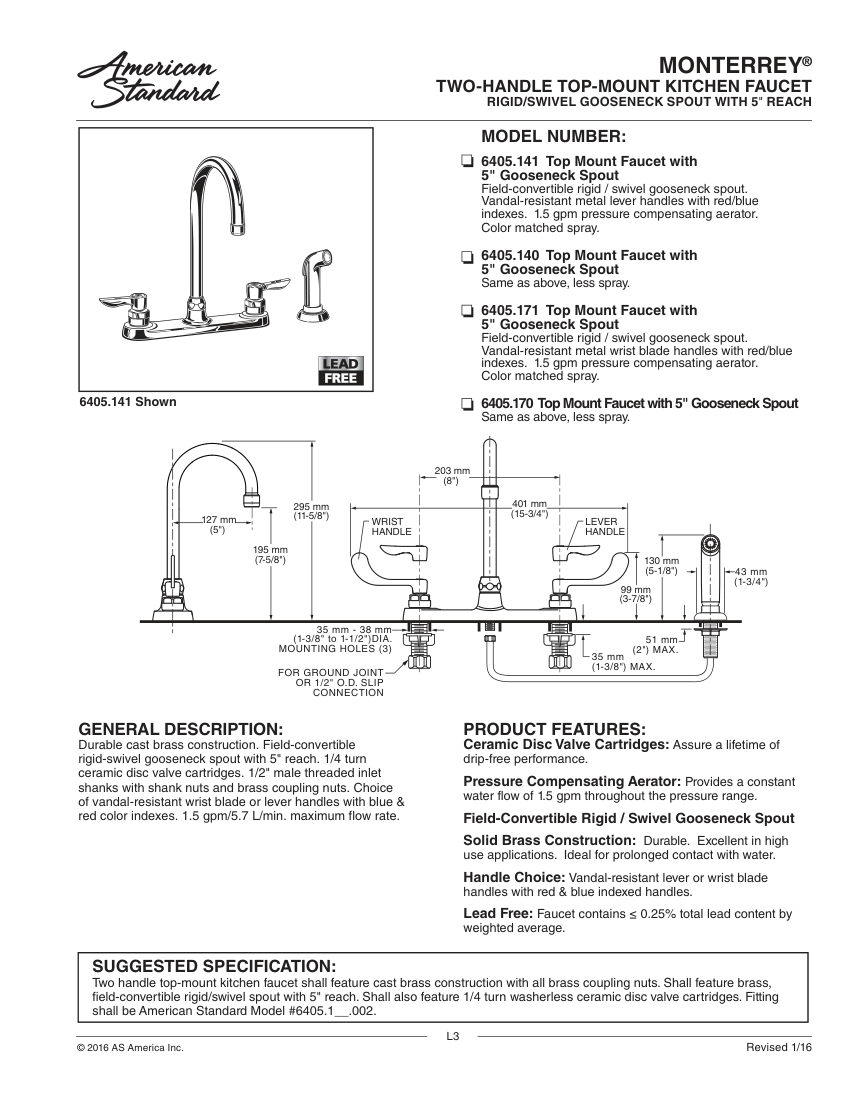

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 6405170 |
|---|---|
| Description | American Standard Top Mount Kitchen Faucet (Monterrey). Model 6405.171. Field-convertible rigid/swivel gooseneck spout with 5" reach; 1/4 turn ceramic disc valve cartridges; Vandal-resistant metal wrist blade handles with red/blue indexes; 1.5 gpm pressure compensating aerator. material: Cast brass |
| Connection size | 1/2" male threaded inlet shanks |
| End connection | 1/2" O.D. slip connection or ground joint |
| Flow Rate | 1.5 gpm/5.7 L/min |
| Mounting | Top mount, 3 mounting holes (35-38 mm dia) |
| Dimensions | Height 295 mm (11-5/8"), Spout Reach 127 mm (5"). |
Also cataloged as: 6405170.002
