DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard6405171

American Standard Two-Handle Top-Mount Kitchen Faucet (Monterrey). Model 6405.171. Field-convertible rigid/swivel gooseneck spout with 5" reach; 1/4 turn ceramic disc valve cartridges; Vandal-resistant metal wrist blade handles with red/blue indexes; Pressure compensating aerator. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6405171.pdfData sheet

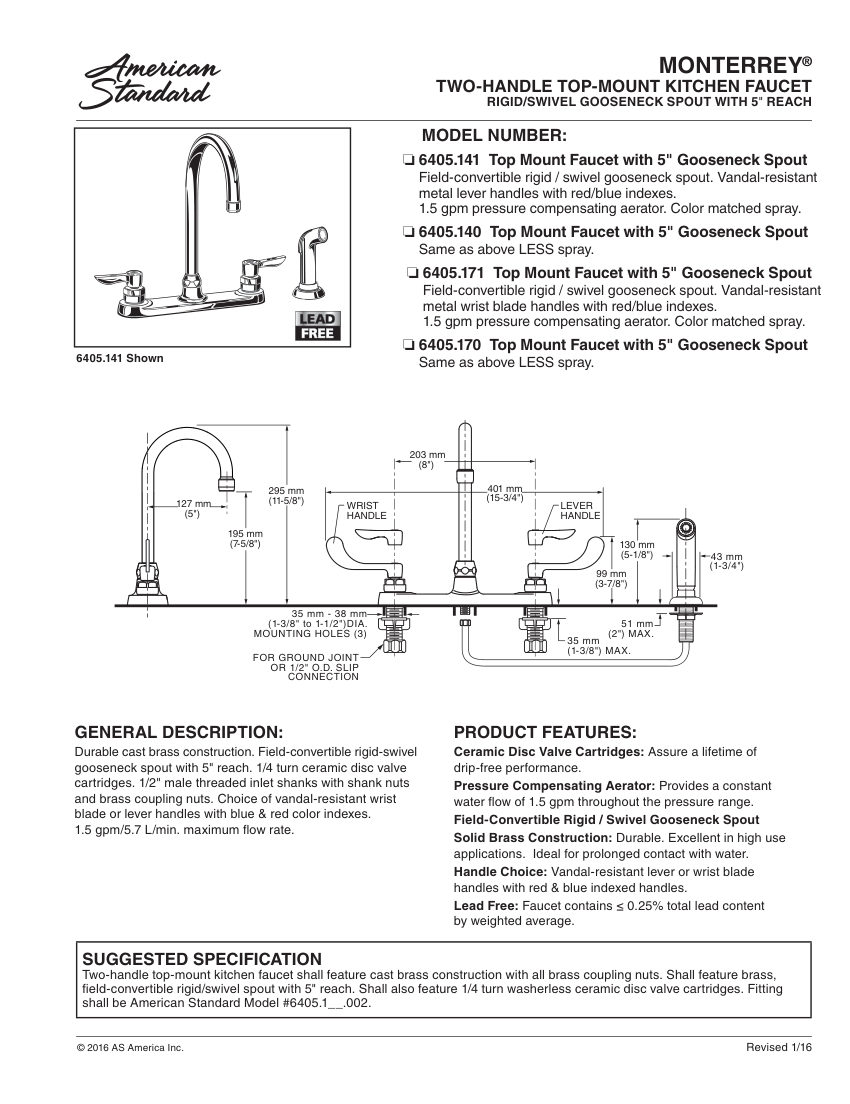

American Standard 6405171 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6405171
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6405171
DescriptionAmerican Standard Two-Handle Top-Mount Kitchen Faucet (Monterrey). Model 6405.171. Field-convertible rigid/swivel gooseneck spout with 5" reach; 1/4 turn ceramic disc valve cartridges; Vandal-resistant metal wrist blade handles with red/blue indexes; Pressure compensating aerator. material: Cast Brass
Connection size1/2" male threaded inlet
End connection1/2" O.D. slip connection or ground joint
Flow Rate1.5 gpm/5.7 L/min
MountingTop Mount
Dimensions295 mm (11-5/8") height, 401 mm (15-3/4") width, 127 mm (5") spout reach.

Also cataloged as: 6405171.002
