DIV 22 · PLUMBINGURINALSCUT SHEET INDEXED

American Standard6501610

American Standard Urinal System with Touchless Flush Valve (Urinal System). Model 6501.610. 1.0 gpf (3.8 Lpf) Ultra High Efficiency; Selectronic® Proximity System with universal sensor; Factory-Installed CR-P2 Lithium Battery (4-year life); Pressure Compensation feature. material: Vitreous china, Dezincification Resistant semi-red brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6501610.pdfData sheet

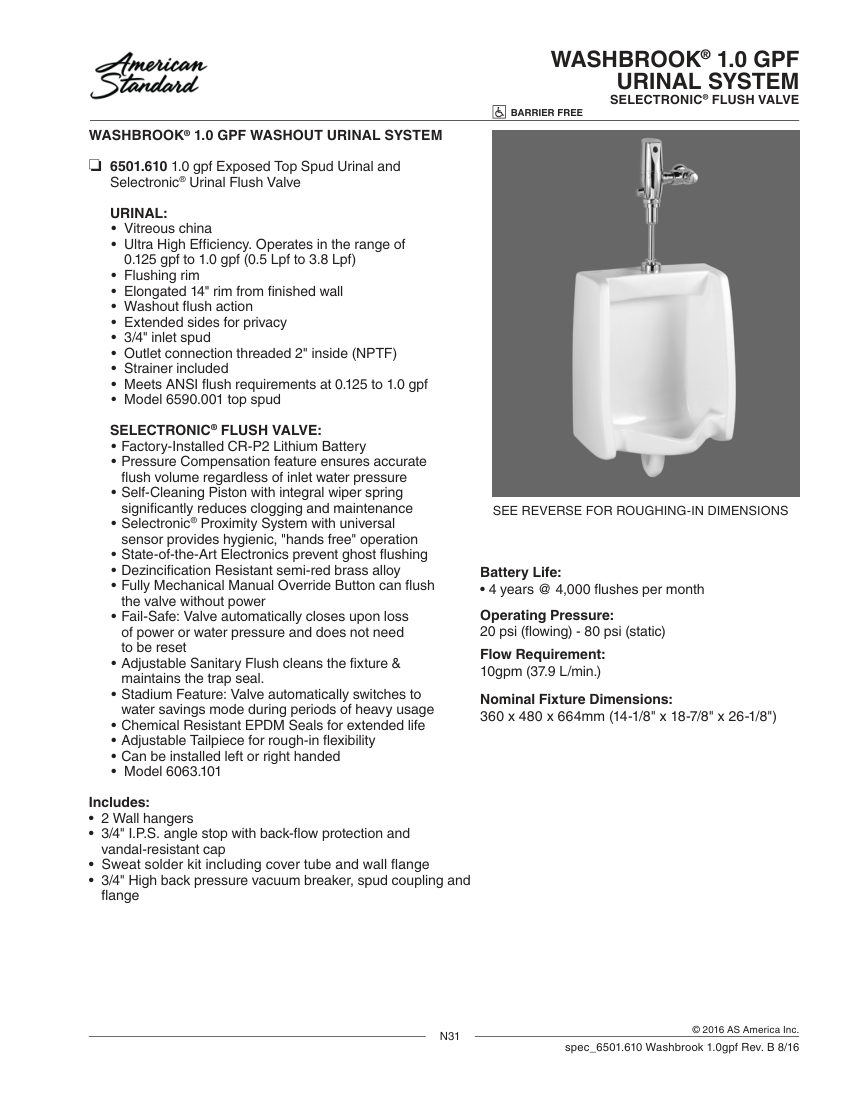

American Standard 6501610 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6501610
Product type
Urinals
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6501610
DescriptionAmerican Standard Urinal System with Touchless Flush Valve (Urinal System). Model 6501.610. 1.0 gpf (3.8 Lpf) Ultra High Efficiency; Selectronic® Proximity System with universal sensor; Factory-Installed CR-P2 Lithium Battery (4-year life); Pressure Compensation feature. material: Vitreous china, Dezincification Resistant semi-red brass alloy
Connection size3/4" inlet spud, 2" NPTF outlet
End connection3/4" I.P.S. angle stop, 2" NPTF female outlet
Pressure Rating20 psi (flowing) - 80 psi (static)
Flow Rate1.0 gpf (3.8 Lpf)
MountingWall hangers, K2 hangers.

Also cataloged as: 6501610.020
