DIV 22 · PLUMBINGURINALSCUT SHEET INDEXED

American Standard6590525

American Standard Urinal System with Flush Valve (Urinal System). Model 6590.525. Ultra High Efficiency 0.125 gpf operation; Selectronic® Touchless Flush Valve with CR-P2 Lithium Battery; Pressure Compensation feature for accurate flush volume; Fail-Safe valve closes upon loss of power or water pressure. material: Vitreous china, Dezincification Resistant semi-red brass alloy

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF6590525.pdfData sheet

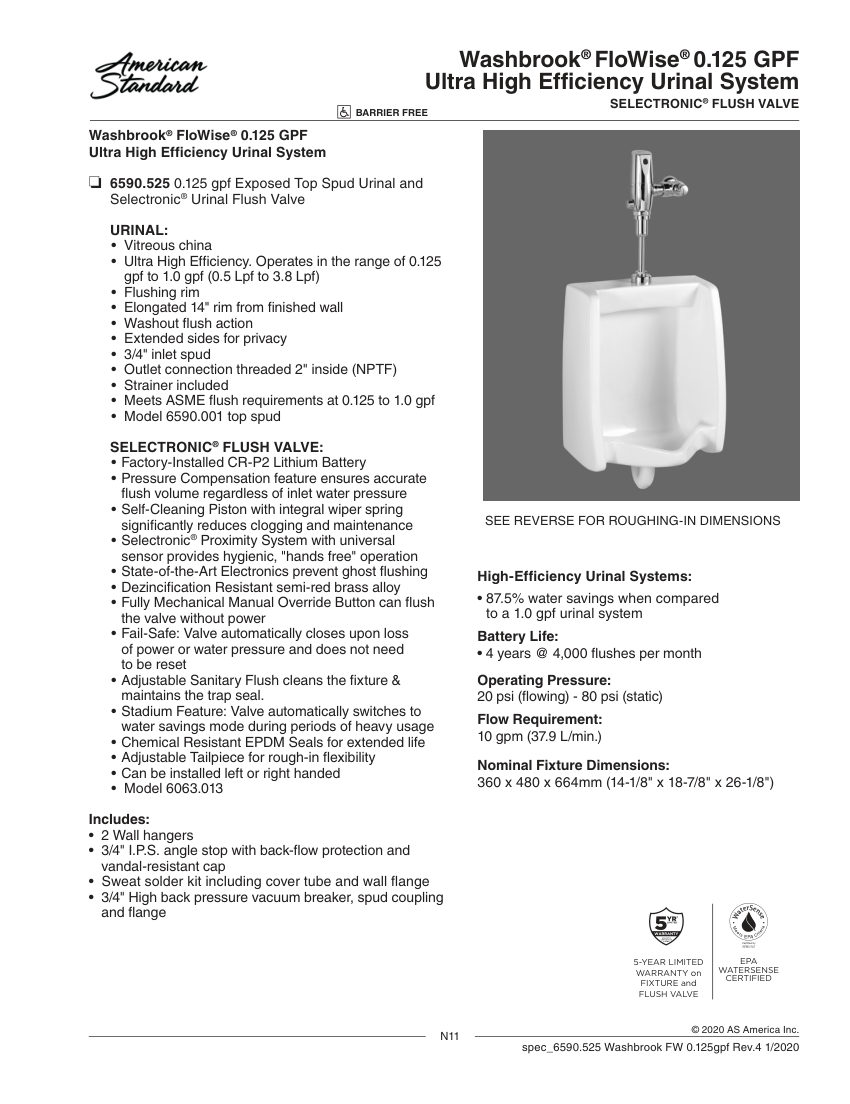

American Standard 6590525 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
6590525
Product type
Urinals
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number6590525
DescriptionAmerican Standard Urinal System with Flush Valve (Urinal System). Model 6590.525. Ultra High Efficiency 0.125 gpf operation; Selectronic® Touchless Flush Valve with CR-P2 Lithium Battery; Pressure Compensation feature for accurate flush volume; Fail-Safe valve closes upon loss of power or water pressure. material: Vitreous china, Dezincification Resistant semi-red brass alloy
Connection size3/4" inlet spud, 2" outlet (NPTF)
End connectionThreaded
Pressure Rating20 psi (flowing) - 80 psi (static)
Flow Rate0.125 gpf (0.5 Lpf)
MountingWall mounted.

Also cataloged as: 6590525.020
