DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardDelsea 8 in. Widespread Bath Faucet7013801

American Standard 2-Handle Widespread Bath Faucet (Bath Faucet). Model 7013801.243. 1.2 gpm/4.5 L/min. maximum flow rate; 8" (203 mm) widespread mounting; Matte Black finish; Easy Install Push Drain with 1-1/4" (32 mm) tail piece. material: Metal spout, non-metal valve bodies with reinforced brass sleeves

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7013801.pdfData sheet

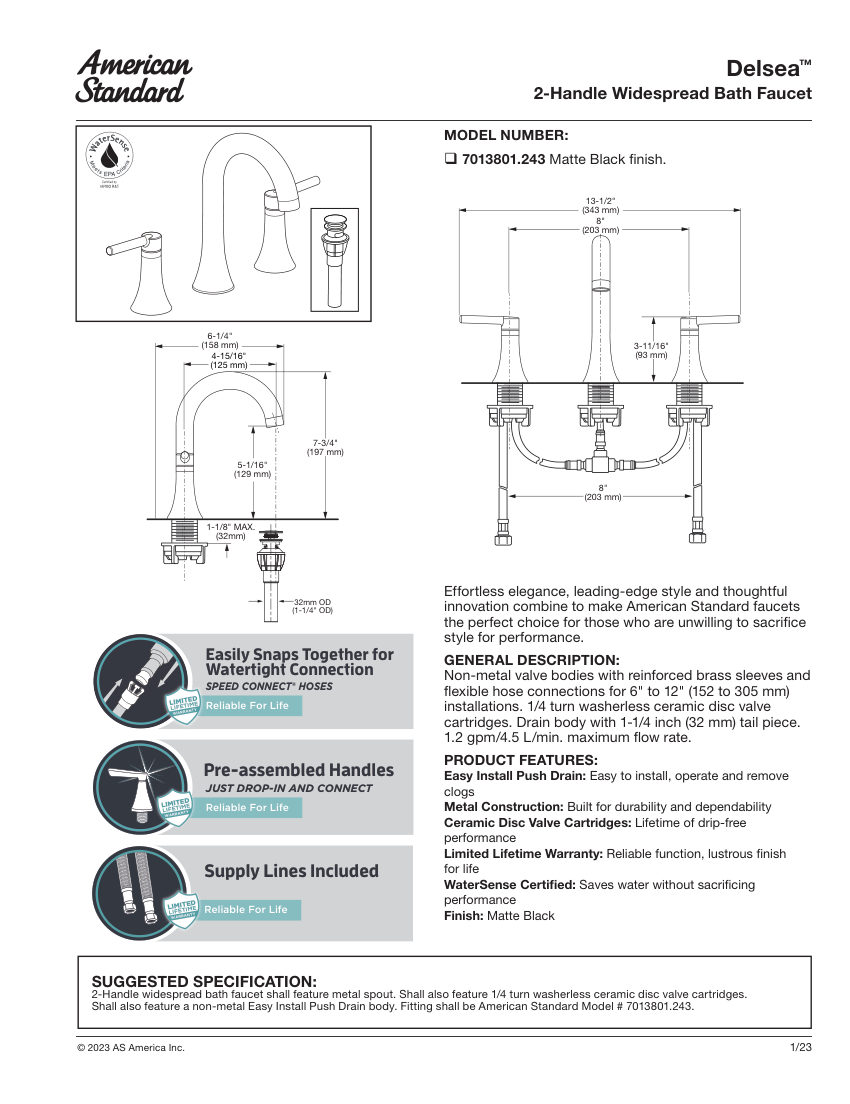

American Standard 7013801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7013801
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7013801
DescriptionAmerican Standard 2-Handle Widespread Bath Faucet (Bath Faucet). Model 7013801.243. 1.2 gpm/4.5 L/min. maximum flow rate; 8" (203 mm) widespread mounting; Matte Black finish; Easy Install Push Drain with 1-1/4" (32 mm) tail piece. material: Metal spout, non-metal valve bodies with reinforced brass sleeves
Connection size1/4 turn washerless ceramic disc valve cartridges
End connectionFlexible hose connections for 6" to 12" (152 to 305 mm) installations
Flow Rate1.2 gpm/4.5 L/min. maximum
FinishMatte Black
MountingWidespread, 8" (203 mm) center-to-center.

Also cataloged as: 7013801.243
