DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7018201

American Standard Two-Handle Centerset Lavatory Faucet (Edgemere). Model 7018.201. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tail piece; 20 inch (500 mm) pre-assembled flexible stainless steel drain cable; Maximum flow rate of 1.2 gpm / 4.5 L/min. material: Metal spout, brass inlet shanks, stainless steel drain cable

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7018201.pdfData sheet

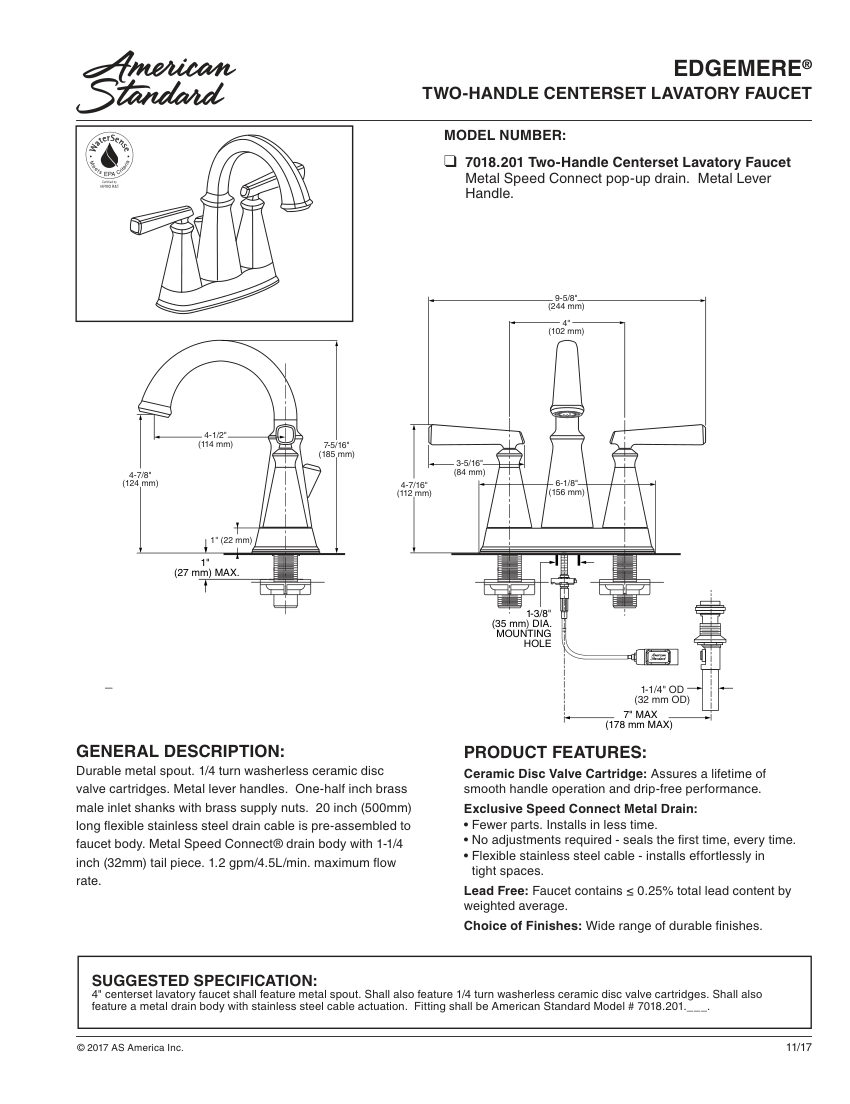

American Standard 7018201 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7018201
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7018201
DescriptionAmerican Standard Two-Handle Centerset Lavatory Faucet (Edgemere). Model 7018.201. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tail piece; 20 inch (500 mm) pre-assembled flexible stainless steel drain cable; Maximum flow rate of 1.2 gpm / 4.5 L/min. material: Metal spout, brass inlet shanks, stainless steel drain cable
Connection size1/2 inch male inlet shanks
End connectionBrass supply nuts
Flow Rate1.2 gpm / 4.5 L/min
Mounting4-inch centerset
Dimensions9-5/8" (244 mm) height, 4-7/8" (124 mm) spout reach.

Also cataloged as: 7018201.002, 7018201.278, 7018201.295, 7018201.243
