DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard702B203

American Standard Touchless Lavatory Faucet (Paradigm Selectronic). Model 702B203. Integrated proximity sensor with programmable detection zone; Above-deck mixing with adjustable hot limit stop and removable handle; Self-cleaning solenoid valve with silicon seals and integral wiper spring; Fail-safe design shuts off water upon power loss. material: Vandal-resistant metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF702B203.pdfData sheet

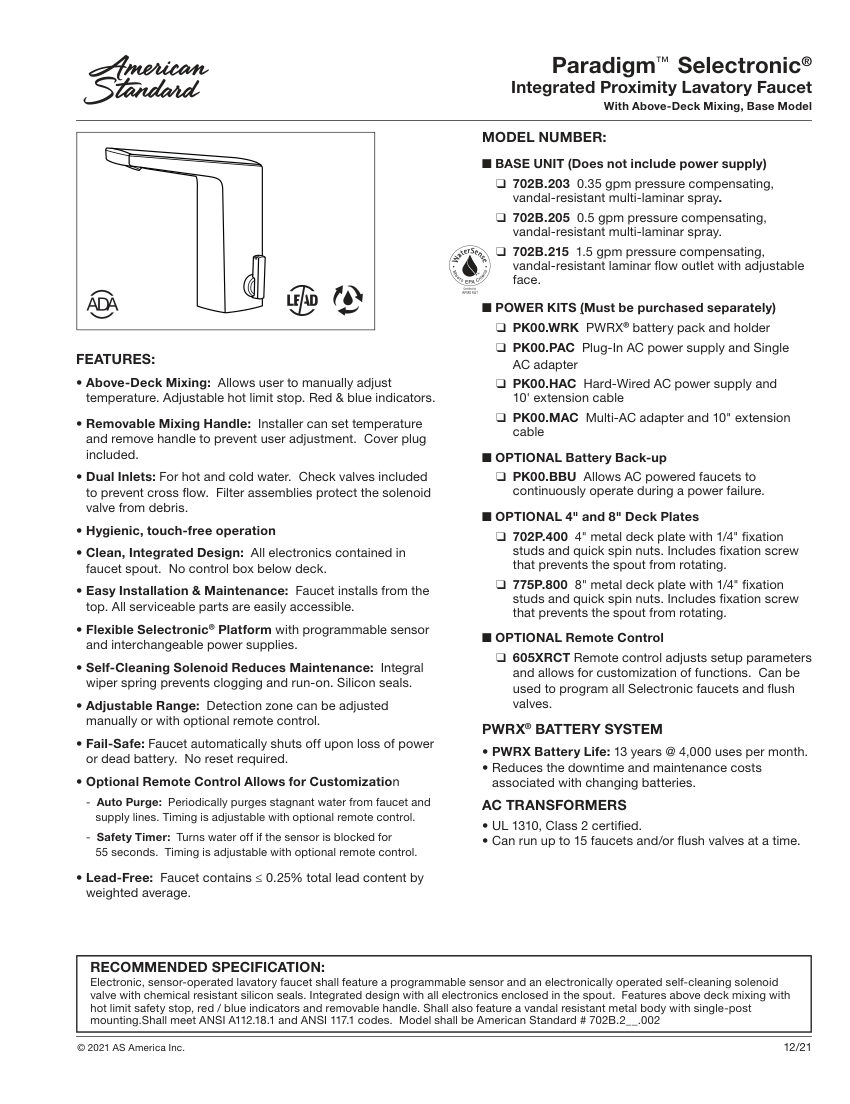

American Standard 702B203 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
702B203
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number702B203
DescriptionAmerican Standard Touchless Lavatory Faucet (Paradigm Selectronic). Model 702B203. Integrated proximity sensor with programmable detection zone; Above-deck mixing with adjustable hot limit stop and removable handle; Self-cleaning solenoid valve with silicon seals and integral wiper spring; Fail-safe design shuts off water upon power loss. material: Vandal-resistant metal
End connectionDual inlets (hot and cold)
Flow Rate0.35 gpm / 1.3 Lpm
MountingAbove-deck, single-post
ComplianceANSI A112.18.1, ANSI 117.1, Lead-Free (≤ 0.25% total lead).

Also cataloged as: 702B203.002, 702B203.295
