DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardTropic 1-Handle Monoblock Bathroom Faucet7038101

American Standard Monoblock Lavatory Faucet (Tropic). Model 7038.101. Washerless 35 mm ceramic disc valve cartridge; Pull-out spray spout with 1100 mm (44") hose; Integral hot limit safety stop; Metal Speed Connect pop-up drain with 32 mm tail piece. material: All metal body, metal lever handle, metal drain

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7038101.pdfData sheet

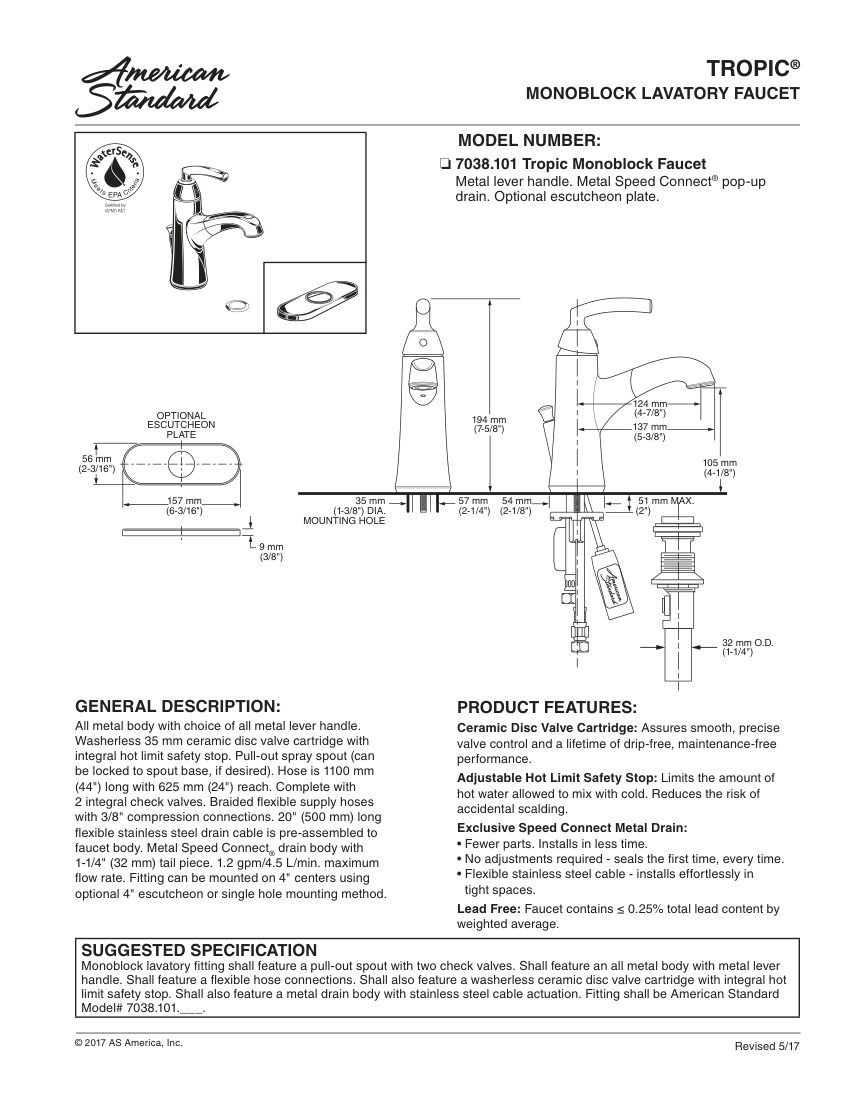

American Standard 7038101 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7038101
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7038101
DescriptionAmerican Standard Monoblock Lavatory Faucet (Tropic). Model 7038.101. Washerless 35 mm ceramic disc valve cartridge; Pull-out spray spout with 1100 mm (44") hose; Integral hot limit safety stop; Metal Speed Connect pop-up drain with 32 mm tail piece. material: All metal body, metal lever handle, metal drain
Connection size3/8" compression connections
End connectionFlexible braided supply hoses
Flow Rate1.2 gpm / 4.5 L/min
MountingSingle hole or 4" centers with optional escutcheon
Dimensions194 mm (7-5/8") height, 157 mm (6-3/16") spout reach.

Also cataloged as: 7038101.002, 7038101.295
