DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7184801

American Standard Two-Handle Widespread Lavatory Faucet (Time Square). Model 7184.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tail piece; Flexible hose connections for 6" to 12" installations; Lead free (≤ 0.25% total lead content). material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7184801.pdfData sheet

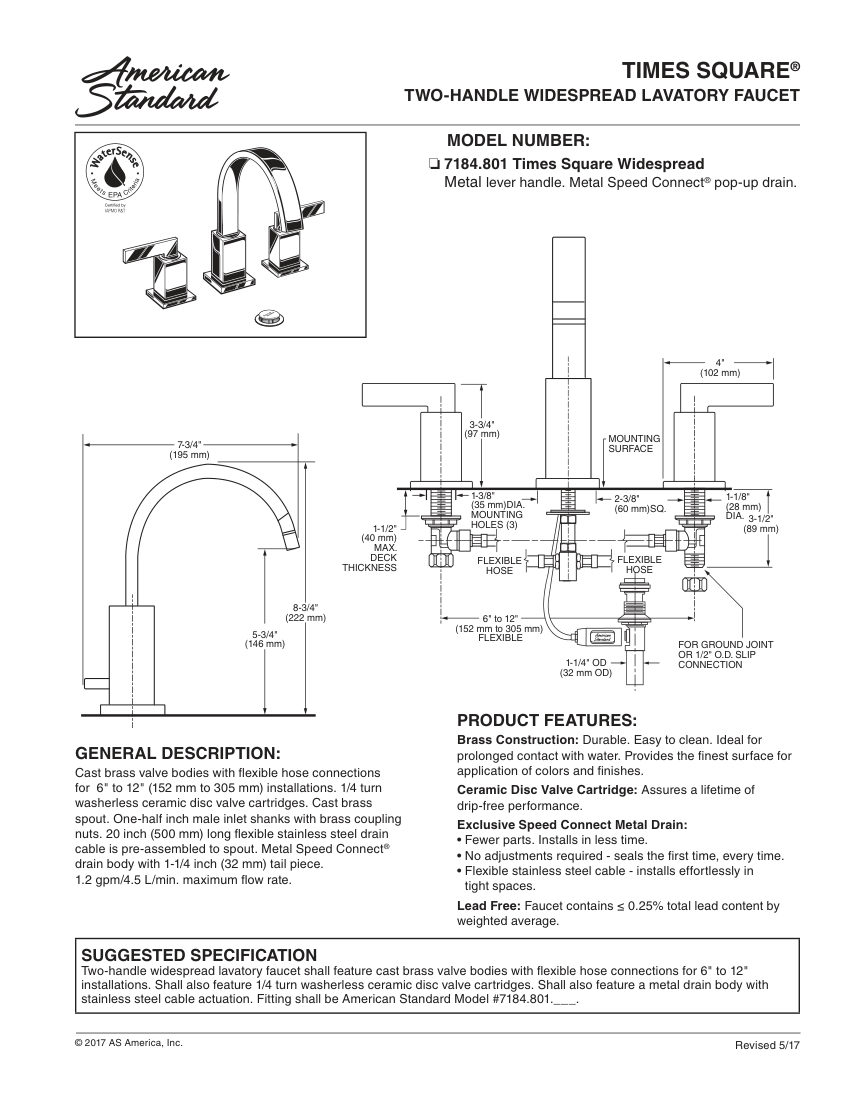

American Standard 7184801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7184801
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7184801
DescriptionAmerican Standard Two-Handle Widespread Lavatory Faucet (Time Square). Model 7184.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tail piece; Flexible hose connections for 6" to 12" installations; Lead free (≤ 0.25% total lead content). material: Cast brass
Connection size1/2" male inlet shanks
End connectionFlexible hose connections
Flow Rate1.2 gpm/4.5 L/min
MountingWidespread, 8" (203 mm) center-to-center
DimensionsSpout reach 5-3/4" (146 mm), Max deck thickness 1-1/2" (40 mm).

Also cataloged as: 7184801.295, 7184801.002
