American Standard7186101
American Standard Single Control Lavatory Faucet (Fluent). Model 7186.101. Washerless 35 mm ceramic disc valve cartridge; Metal Speed Connect pop-up drain with 1-1/4" tail piece
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 7186101
- Product type
- Faucets
- MasterFormat
- 22

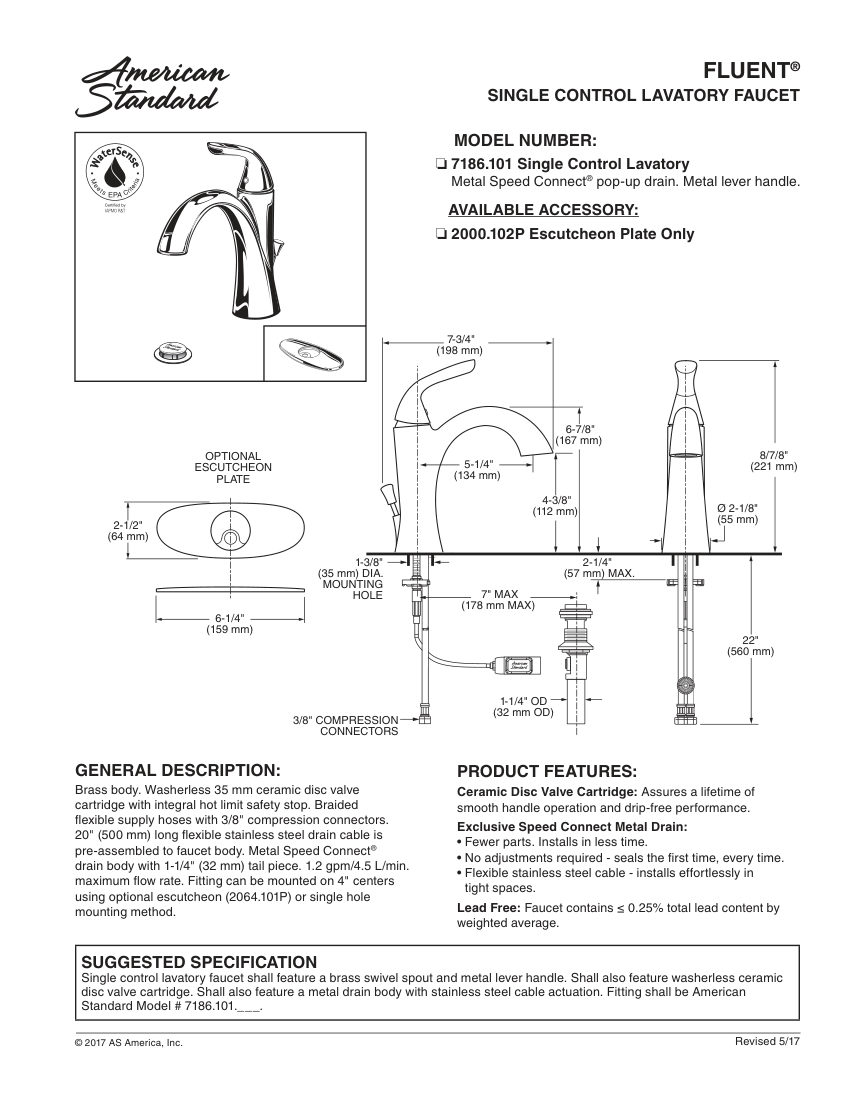

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 7186101 |
|---|---|
| Description | American Standard Single Control Lavatory Faucet (Fluent). Model 7186.101. Washerless 35 mm ceramic disc valve cartridge; Metal Speed Connect pop-up drain with 1-1/4" tail piece |
| Lead Free | ≤ 0.25% total lead content; Pre-assembled 20" (500 mm) flexible stainless steel drain cable. material: Brass body, Metal lever handle, Stainless steel drain cable |
| Connection size | 3/8" compression connectors |
| End connection | 3/8" compression |
| Flow Rate | 1.2 gpm/4.5 L/min |
| Finish | Polished, Oil Rubbed, Brushed |
| Mounting | Single hole or 4" centers with escutcheon. |
Also cataloged as: 7186101.002, 7186101.224, 7186101.278, 7186101.295
