DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7353101

American Standard lavatory faucet (Townsend). Model 7353101. Washerless 35 mm ceramic disc valve cartridge; Integral hot limit safety stop; Lead free (≤ 0.25% total lead content); Includes braided flexible supply hoses. material: Cast brass body, metal lever handle, brass push pop-up drain

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7353101.pdfData sheet

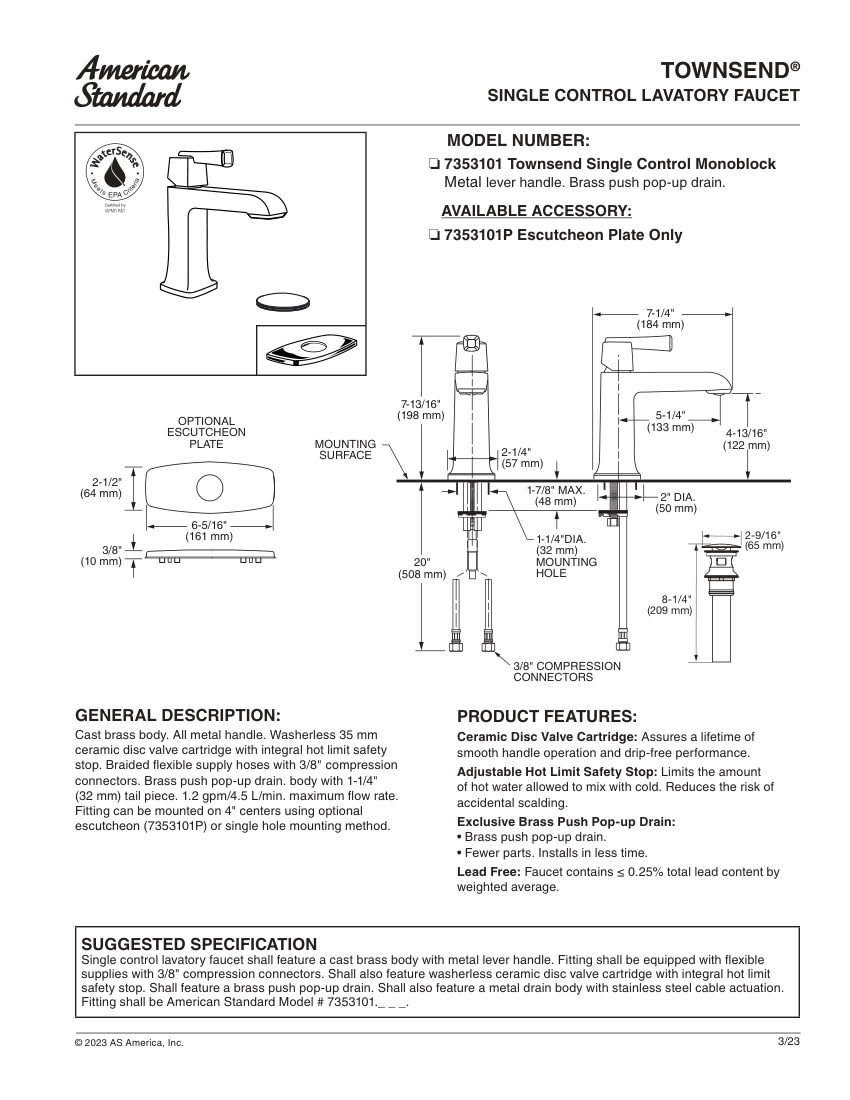

American Standard 7353101 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7353101
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7353101
DescriptionAmerican Standard lavatory faucet (Townsend). Model 7353101. Washerless 35 mm ceramic disc valve cartridge; Integral hot limit safety stop; Lead free (≤ 0.25% total lead content); Includes braided flexible supply hoses. material: Cast brass body, metal lever handle, brass push pop-up drain
Connection size3/8" compression connectors
End connection3/8" compression
Flow Rate1.2 gpm/4.5 L/min
MountingSingle hole or 4" centers with optional escutcheon
Dimensions8-1/4" (209 mm) height, 7-1/4" (184 mm) spout reach.

Also cataloged as: 7353101.GN0, 7353101.002, 7353101.013, 7353101.278, 7353101.295, 7353101.243
