DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7415801

American Standard Two-Handle Widespread Lavatory Faucet (Portsmouth). Model 7415.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tailpiece; Flexible stainless steel drain cable (20" / 500 mm); Lead free (≤ 0.25% total lead content). material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7415801.pdfData sheet

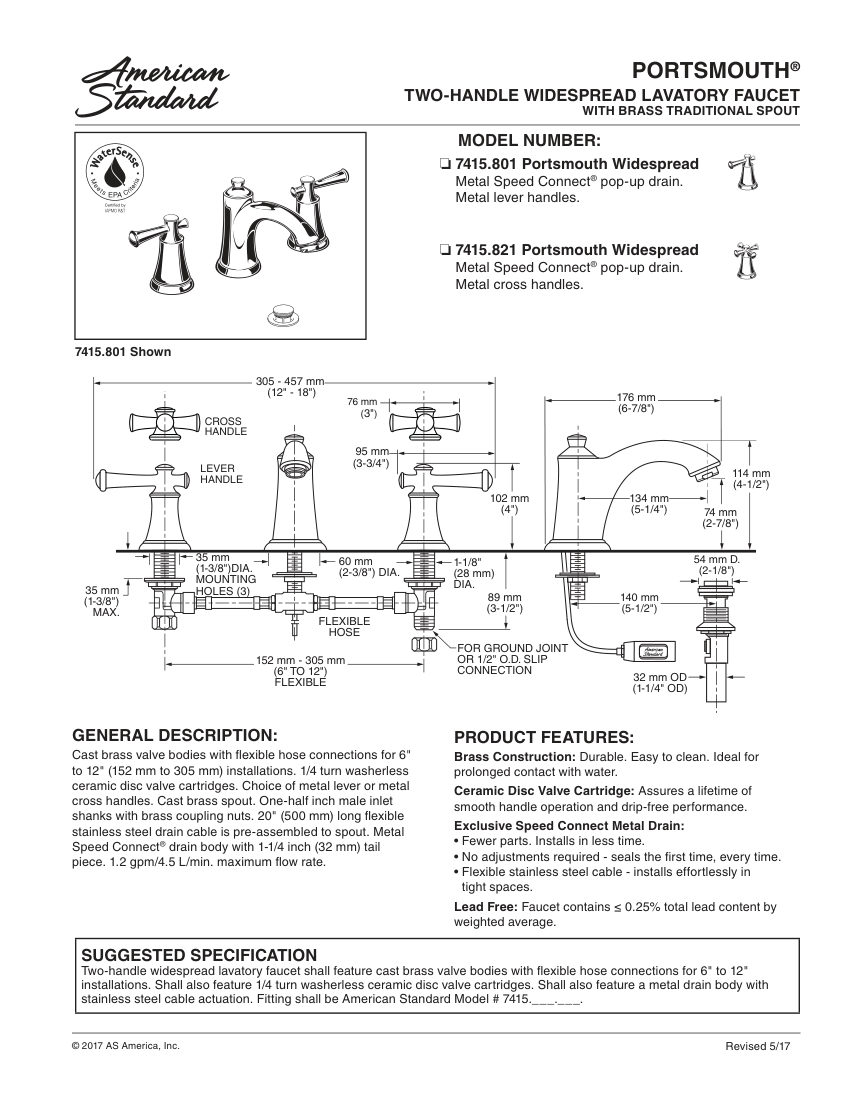

American Standard 7415801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7415801
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7415801
DescriptionAmerican Standard Two-Handle Widespread Lavatory Faucet (Portsmouth). Model 7415.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tailpiece; Flexible stainless steel drain cable (20" / 500 mm); Lead free (≤ 0.25% total lead content). material: Cast brass
Connection size1/2" male inlet shanks
End connectionFlexible hose connections
Flow Rate1.2 gpm/4.5 L/min
Mounting3 mounting holes (35 mm / 1-3/8" dia.)
Dimensions305 - 457 mm (12" - 18") center-to-center.

Also cataloged as: 7415801.002, 7415801.224, 7415801.295
