DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7417801

American Standard 2-Handle Widespread Bath Faucet (Bathroom Faucet). Model 7417801. 1/4 turn washerless ceramic disc valve cartridges; Easy Install Push Drain body; Suitable for 6" to 12" (152 to 305 mm) installations; Limited Lifetime Warranty. material: Non-metal valve bodies with reinforced brass sleeves, metal spout

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7417801.pdfData sheet

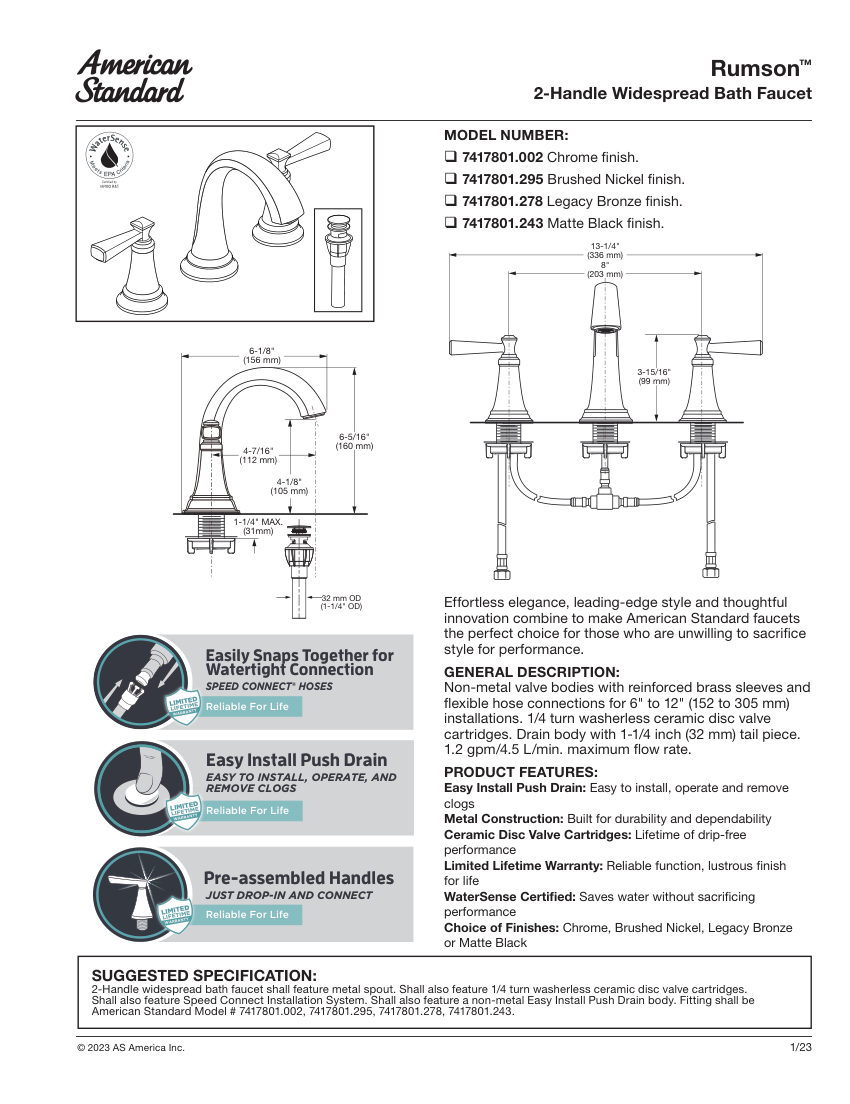

American Standard 7417801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7417801
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7417801
DescriptionAmerican Standard 2-Handle Widespread Bath Faucet (Bathroom Faucet). Model 7417801. 1/4 turn washerless ceramic disc valve cartridges; Easy Install Push Drain body; Suitable for 6" to 12" (152 to 305 mm) installations; Limited Lifetime Warranty. material: Non-metal valve bodies with reinforced brass sleeves, metal spout
Connection size1-1/4 inch (32 mm) tail piece
End connectionSpeed Connect flexible hose connections
Flow Rate1.2 gpm/4.5 L/min
FinishChrome, Brushed Nickel, Legacy Bronze, Matte Black
MountingWidespread 8-inch (203 mm) centers.

Also cataloged as: 7417801.295, 7417801.002, 7417801.243, 7417801.278
