American Standard7420801
American Standard Two-Handle Widespread Lavatory Faucet (Portsmouth). Model 7420.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4 inch tailpiece; Lead free with ≤ 0.25% total lead content; Includes 20 inch flexible stainless steel drain cable. material: Cast brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- American Standard
- Catalog no.
- 7420801
- Product type
- Faucets
- MasterFormat
- 22

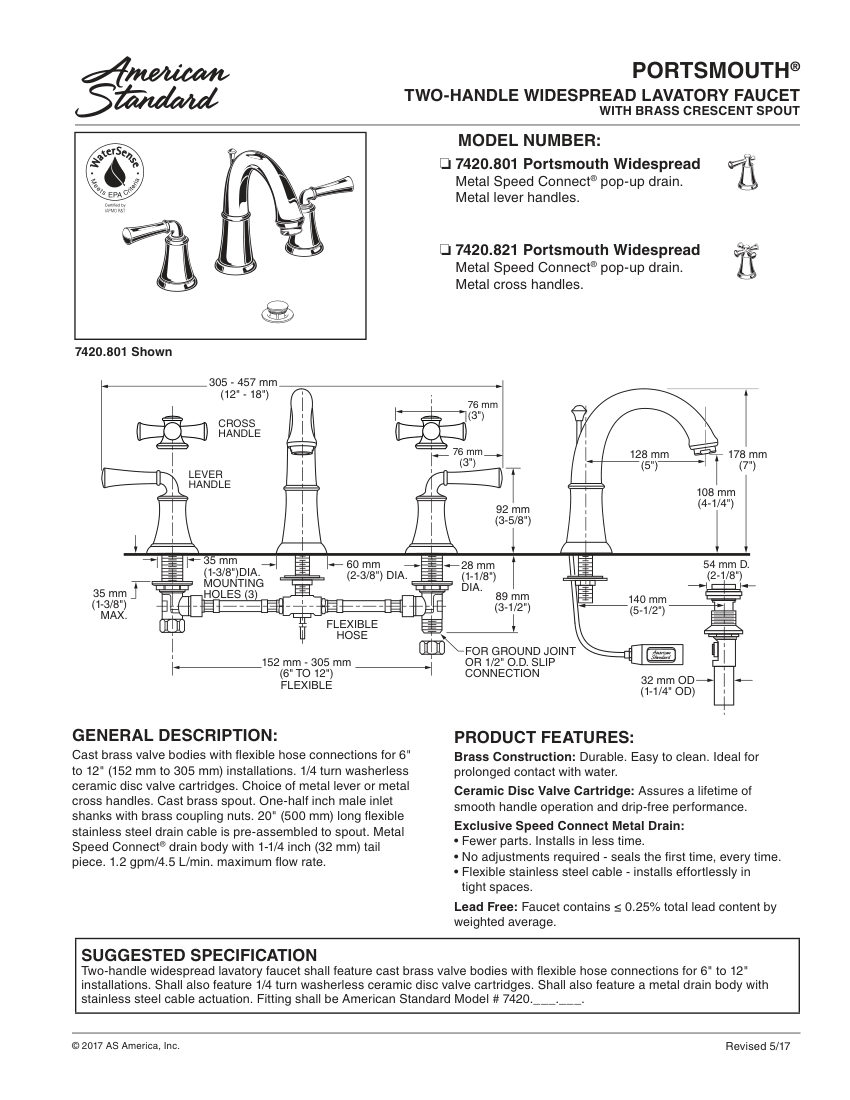

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 7420801 |
|---|---|
| Description | American Standard Two-Handle Widespread Lavatory Faucet (Portsmouth). Model 7420.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4 inch tailpiece; Lead free with ≤ 0.25% total lead content; Includes 20 inch flexible stainless steel drain cable. material: Cast brass |
| Connection size | 1/2 inch male inlet shanks |
| End connection | Flexible hose connections |
| Flow Rate | 1.2 gpm/4.5 L/min |
| Mounting | Widespread 12" - 18" (305 - 457 mm) |
| Dimensions | Spout height 7" (178 mm), Spout reach 5" (128 mm). |
Also cataloged as: 7420801.002, 7420801.224, 7420801.295
