DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7420F10801

American Standard Two-Handle Widespread Lavatory Faucet (Portsmouth). Model 7420.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tailpiece; Lead free (≤ 0.25% total lead content); Includes 20" (500 mm) flexible stainless steel drain cable. material: Cast brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7420F10801.pdfData sheet

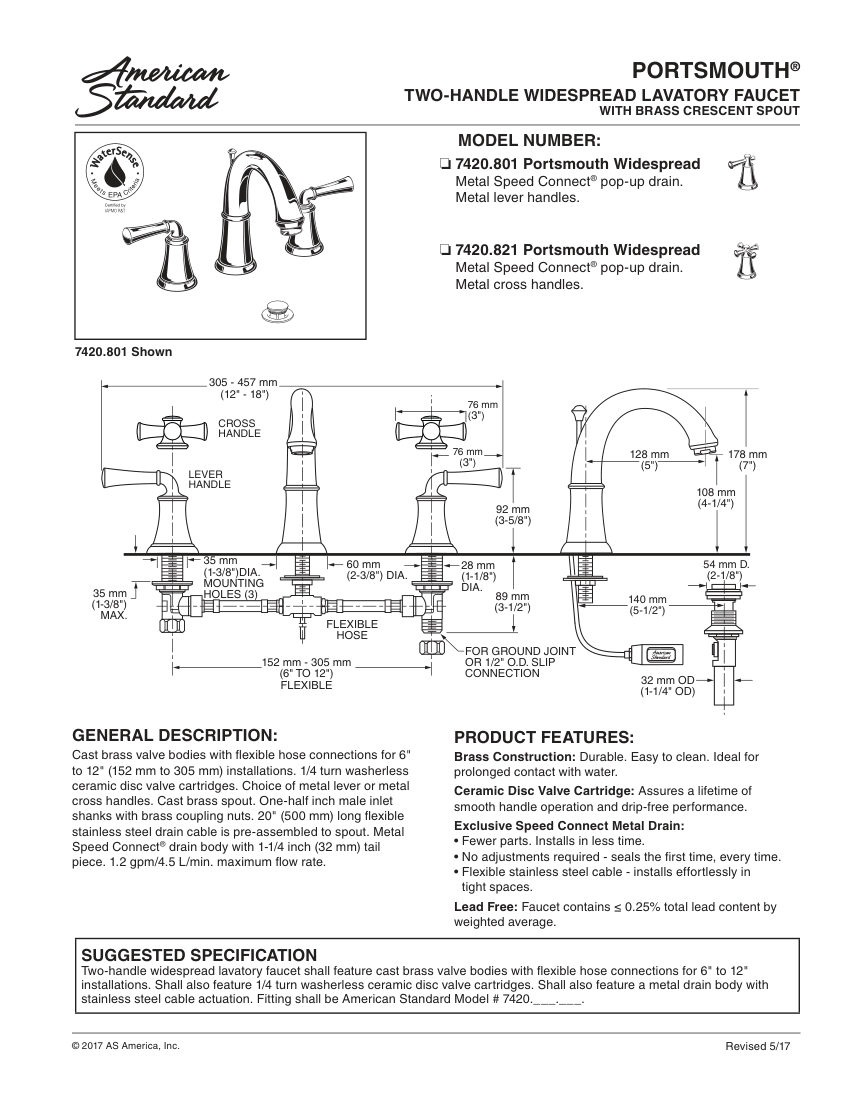

American Standard 7420F10801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7420F10801
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7420F10801
DescriptionAmerican Standard Two-Handle Widespread Lavatory Faucet (Portsmouth). Model 7420.801. 1/4 turn washerless ceramic disc valve cartridges; Metal Speed Connect pop-up drain with 1-1/4" tailpiece; Lead free (≤ 0.25% total lead content); Includes 20" (500 mm) flexible stainless steel drain cable. material: Cast brass
Connection size1/2" male inlet shanks
End connectionFlexible hose connections
Flow Rate1.2 gpm/4.5 L/min
MountingWidespread 12" - 18" (305 - 457 mm)
DimensionsSpout height 178 mm (7"), Spout reach 128 mm (5").

Also cataloged as: 7420F10801.002
