American StandardBelmeade Tub and Shower Trim Kit with Valve7426508

American Standard Tub and Shower Trim Kit with Valve (Tub and Shower Trim Kit). Model 7426508. 1 Handle Tub/Shower with 1-Function Showerhead; Pressure balancing cartridge maintains constant output temperature; Cast DZR Brass Valve Body; Flat Back design for flush mounting against cross brace. material: Cast DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7426508.pdfData sheet

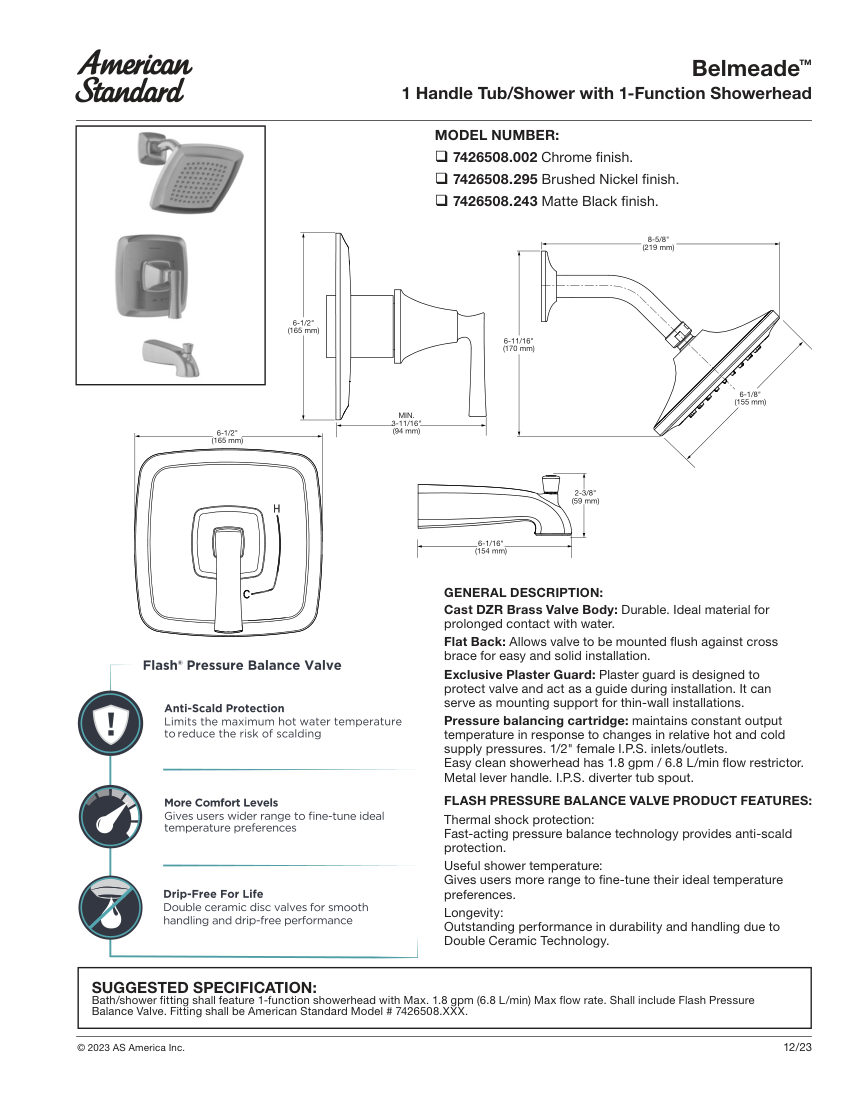

American Standard 7426508 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7426508
Product type
Bathtubs
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7426508
DescriptionAmerican Standard Tub and Shower Trim Kit with Valve (Tub and Shower Trim Kit). Model 7426508. 1 Handle Tub/Shower with 1-Function Showerhead; Pressure balancing cartridge maintains constant output temperature; Cast DZR Brass Valve Body; Flat Back design for flush mounting against cross brace. material: Cast DZR Brass
Connection size1/2" female I.P.S.
End connection1/2" female I.P.S. inlets/outlets
FinishChrome, Brushed Nickel, Matte Black
MountingFlat Back, Plaster Guard
Dimensions8-5/8" (219 mm) x 6-1/2" (165 mm).

Also cataloged as: 7426508.002, 7426508.295, 7426508.243
