DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7506801

American Standard 2-Handle Widespread Bathroom Faucet (Bathroom Faucet). Model 7506801.002. 1/4 turn washerless ceramic disc valve cartridges; Includes laminar flow aerator for clean water stream; Lead free with ≤0.25% total lead content; Flexible hose connections for 6" to 12" (152 to 305 mm) installations. material: Non-metal valve bodies with reinforced brass sleeves

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7506801.pdfData sheet

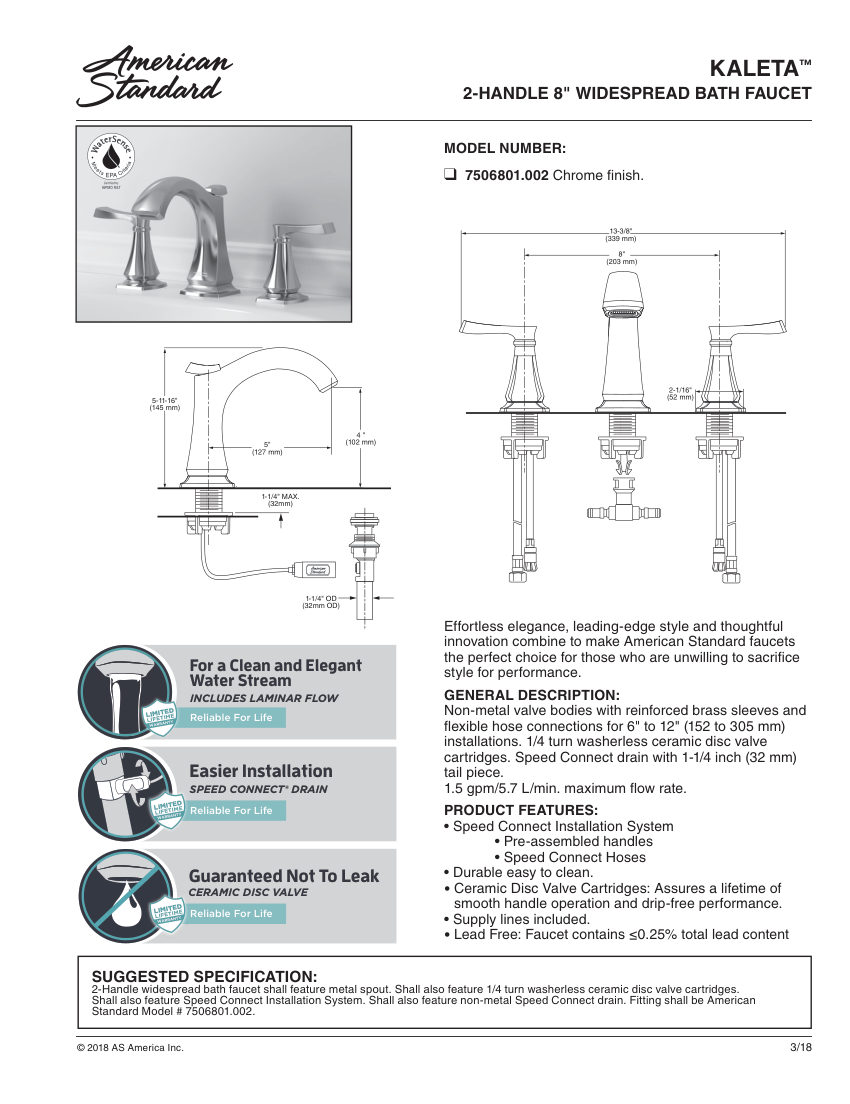

American Standard 7506801 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7506801
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7506801
DescriptionAmerican Standard 2-Handle Widespread Bathroom Faucet (Bathroom Faucet). Model 7506801.002. 1/4 turn washerless ceramic disc valve cartridges; Includes laminar flow aerator for clean water stream; Lead free with ≤0.25% total lead content; Flexible hose connections for 6" to 12" (152 to 305 mm) installations. material: Non-metal valve bodies with reinforced brass sleeves
Connection size1-1/4 inch (32 mm) tail piece
End connectionSpeed Connect drain
Flow Rate1.5 gpm/5.7 L/min
FinishChrome
Mounting8-inch widespread.

Also cataloged as: 7506801.002
