DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardLaundry Faucet7573240

American Standard Two-Handle Laundry Faucet (Laundry Faucet). Model 7573.140, 7573.240, 7573.240.F15. 1/4 turn washerless ceramic disc valve cartridges; Brass swivel spout with 360° rotation; Available with hose end or aerator; Low lead compliant. material: Cast Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7573240.pdfData sheet

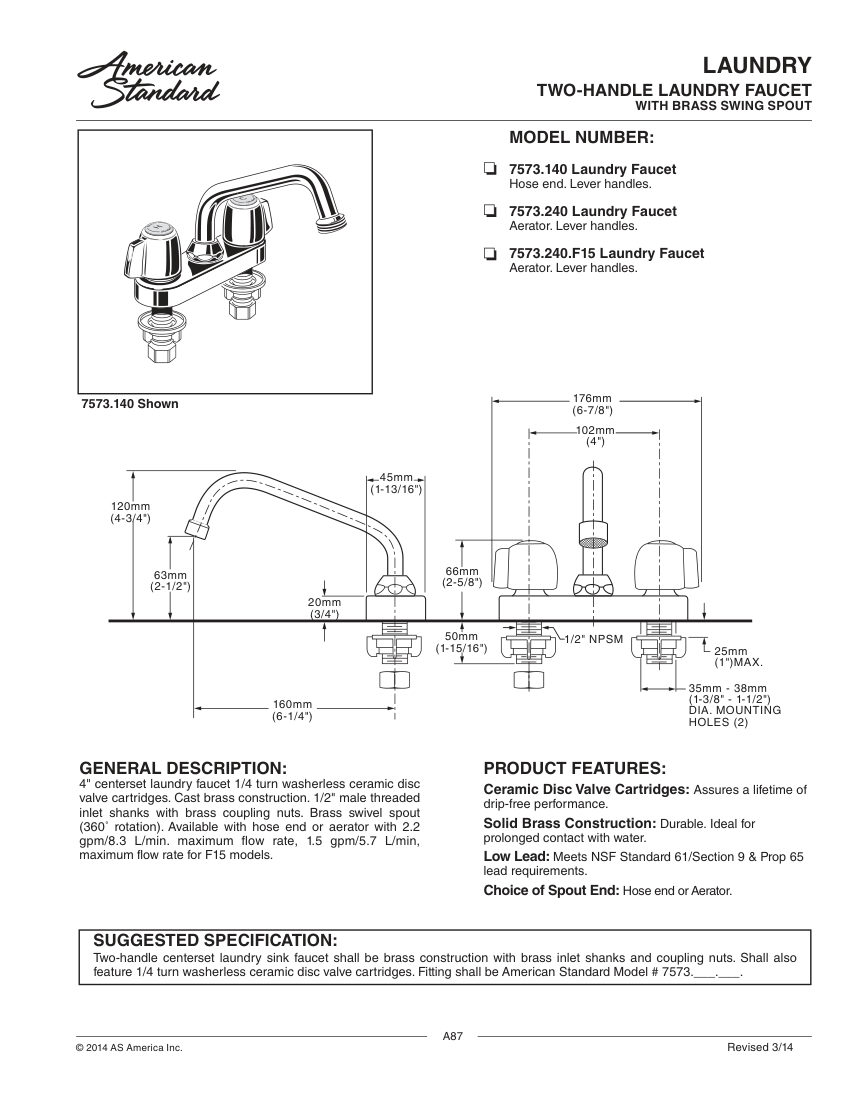

American Standard 7573240 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7573240
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7573240
DescriptionAmerican Standard Two-Handle Laundry Faucet (Laundry Faucet). Model 7573.140, 7573.240, 7573.240.F15. 1/4 turn washerless ceramic disc valve cartridges; Brass swivel spout with 360° rotation; Available with hose end or aerator; Low lead compliant. material: Cast Brass
Connection size1/2" NPSM
End connectionMale threaded inlet shanks with brass coupling nuts
Flow Rate2.2 gpm/8.3 L/min (Standard), 1.5 gpm/5.7 L/min (F15)
Mounting4" centerset, 35mm - 38mm dia. mounting holes (2)
Dimensions176mm (6-7/8") height, 120mm (4-3/4") spout reach.

Also cataloged as: 7573240.002
