DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American Standard7764F

American Standard Centerset Lavatory Faucet (Marquette). Model 7764F. 1/4 turn washerless ceramic disc valve cartridges; Speed Connect® pre-assembled drain with flexible stainless steel cable; No tools or plumbers putty required for installation; Lifetime drip-free performance. material: Cast brass waterways, metal body, metal lever handles

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7764F.pdfData sheet

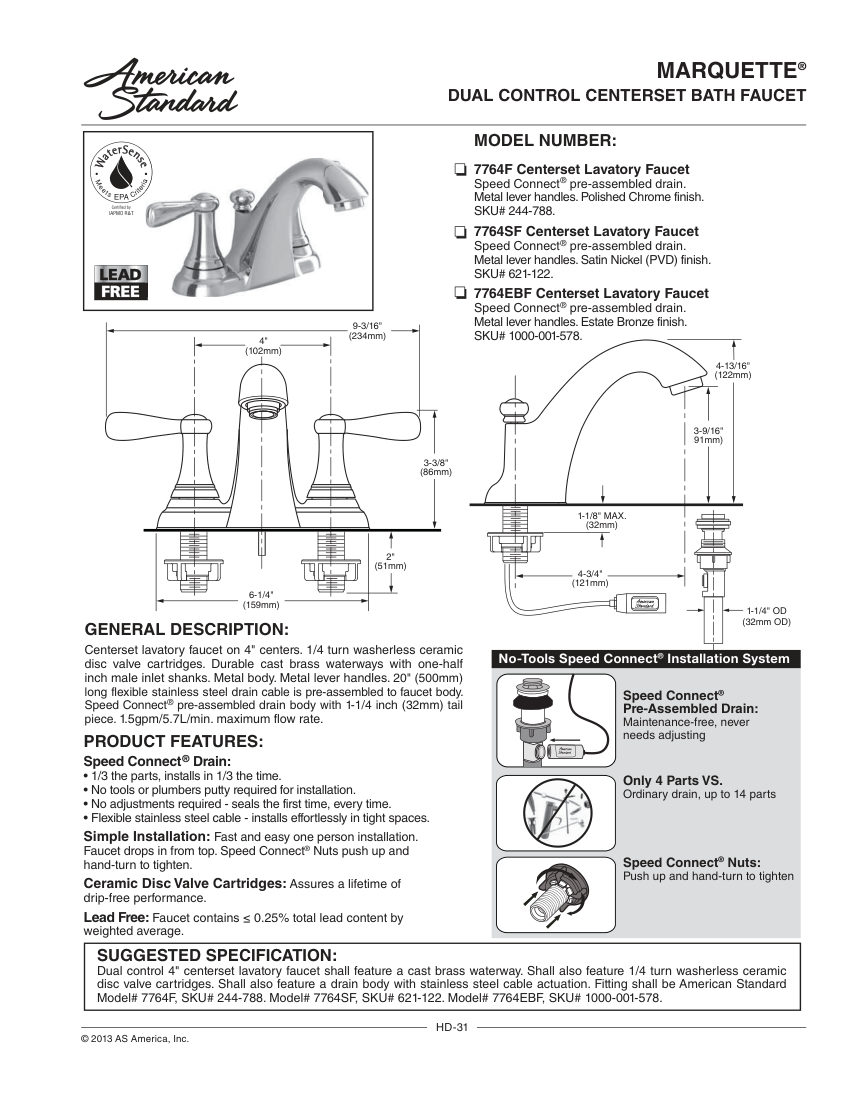

American Standard 7764F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7764F
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7764F
DescriptionAmerican Standard Centerset Lavatory Faucet (Marquette). Model 7764F. 1/4 turn washerless ceramic disc valve cartridges; Speed Connect® pre-assembled drain with flexible stainless steel cable; No tools or plumbers putty required for installation; Lifetime drip-free performance. material: Cast brass waterways, metal body, metal lever handles
Connection size4-inch centerset
End connection1/2-inch male inlet shanks, 1-1/4-inch tailpiece
Flow Rate1.5 GPM / 5.7 L/min
FinishPolished Chrome
MountingCenterset, top drop-in.

Also cataloged as: 7764SF
