DIV 22 · PLUMBINGPLUMBING FIXTURESCUT SHEET INDEXED

American Standard7880124

American Standard Bed Pan Cleanser Assembly (Bed Pan Cleanser). Model 7880.124. Includes wall nozzle with hook, double pedal valve, and atmospheric vacuum breaker; Self-closing spray valve and wall-mounted self-closing double pedal valve; Color-coded cast aluminum pedals for hot and cold water; 46-inch rubber hose with 10-inch spray end. material: Cast brass, Cast aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF7880124.pdfData sheet

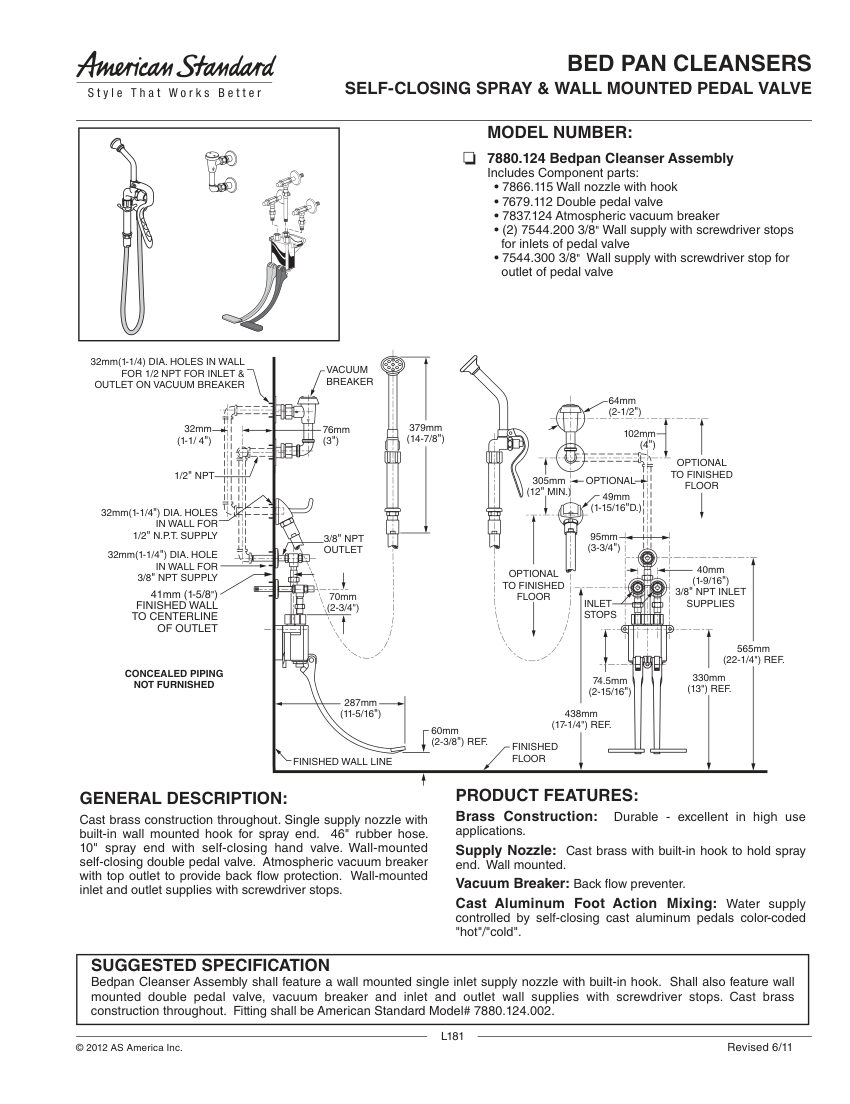

American Standard 7880124 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
7880124
Product type
Plumbing Fixtures
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number7880124
DescriptionAmerican Standard Bed Pan Cleanser Assembly (Bed Pan Cleanser). Model 7880.124. Includes wall nozzle with hook, double pedal valve, and atmospheric vacuum breaker; Self-closing spray valve and wall-mounted self-closing double pedal valve; Color-coded cast aluminum pedals for hot and cold water; 46-inch rubber hose with 10-inch spray end. material: Cast brass, Cast aluminum
Connection size1/2" NPT, 3/8" NPT
End connectionNPT
MountingWall mounted
DimensionsHose: 46", Spray end: 10"
ComplianceBack flow protection.

Also cataloged as: 7880124.002
