DIV 22 · PLUMBINGFAUCETSCUT SHEET INDEXED

American StandardEdgemere 1-Handle Pull-Out Kitchen Faucet9016100

American Standard Kitchen Faucet (Edgemere). Model 9016.100.002 / 9016.100.075. Ceramic disc valve cartridge with integral hot limit safety stop; Swivel pull-out spray spout with adjustable pattern; 48" (1250mm) nylon reinforced hose; Lead free (≤ 0.25% total lead content). material: Metal body, metal escutcheon, brass mounting shank

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9016100.pdfData sheet

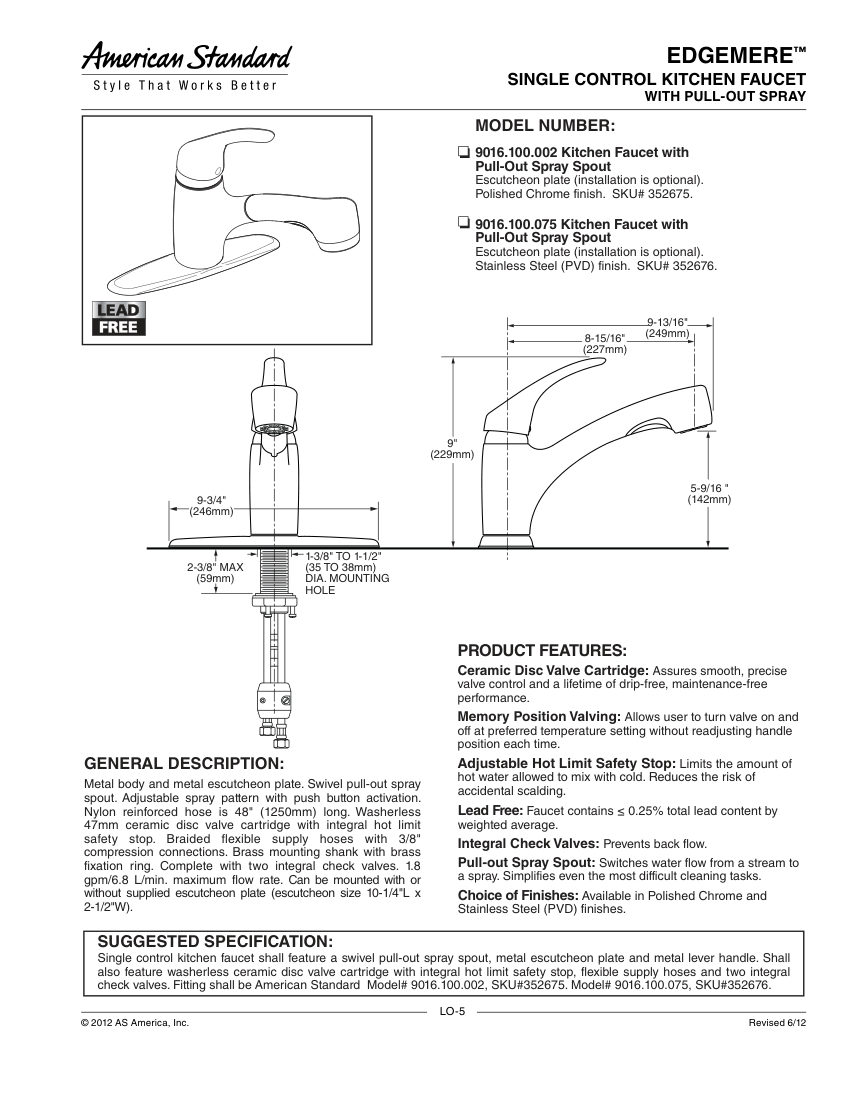

American Standard 9016100 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
9016100
Product type
Faucets
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9016100
DescriptionAmerican Standard Kitchen Faucet (Edgemere). Model 9016.100.002 / 9016.100.075. Ceramic disc valve cartridge with integral hot limit safety stop; Swivel pull-out spray spout with adjustable pattern; 48" (1250mm) nylon reinforced hose; Lead free (≤ 0.25% total lead content). material: Metal body, metal escutcheon, brass mounting shank
Connection size3/8" compression
End connectionBraided flexible supply hoses
Flow Rate1.8 gpm / 6.8 L/min
FinishPolished Chrome, Stainless Steel (PVD)
Mounting1-3/8" to 1-1/2" dia. mounting hole.

Also cataloged as: 9016100.002, 9016100.075
