DIV 22 · PLUMBINGSHOWERSCUT SHEET INDEXED

American Standard9035804

American Standard Shower System Kit (Spectra Versa). Model 9035804. Includes 24-inch shower system and 69-inch hose; 4-function hand shower: Drench, Sensitive, Powerwash, Massage; Pressure compensating flow control device; Includes two check valves to prevent backflow. connectionSize: 1/2" (implied by standard, not explicitly stated in text, but 1/4" and 1/8" are shown for hose/valve details)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9035804.pdfData sheet

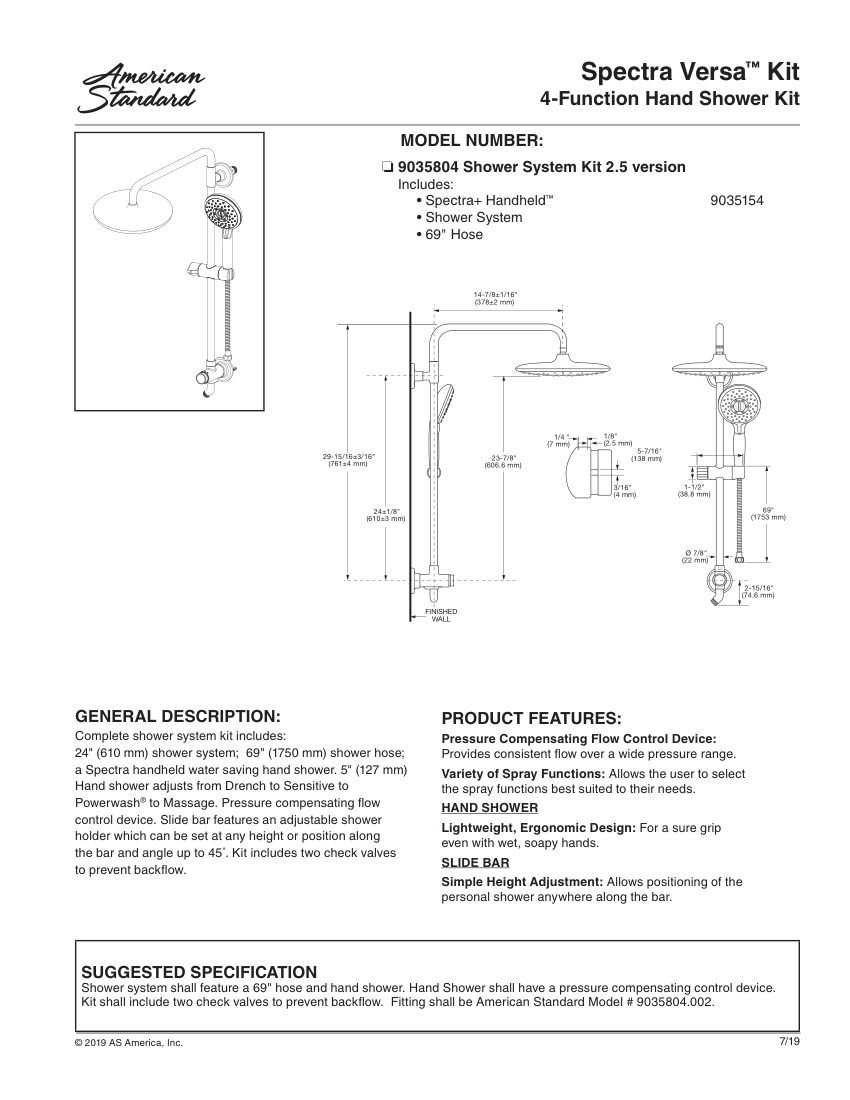

American Standard 9035804 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
American Standard
Catalog no.
9035804
Product type
Showers
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9035804
DescriptionAmerican Standard Shower System Kit (Spectra Versa). Model 9035804. Includes 24-inch shower system and 69-inch hose; 4-function hand shower: Drench, Sensitive, Powerwash, Massage; Pressure compensating flow control device; Includes two check valves to prevent backflow. connectionSize: 1/2" (implied by standard, not explicitly stated in text, but 1/4" and 1/8" are shown for hose/valve details)
Flow Rate2.5 gpm / 9.5 L/min
MountingWall mounted
Dimensions24" (610 mm) shower system; 69" (1753 mm) hose
ComplianceASME A112.18.1, CSA B125.1.

Also cataloged as: 9035804.002, 9035804.295, 9035804.278
